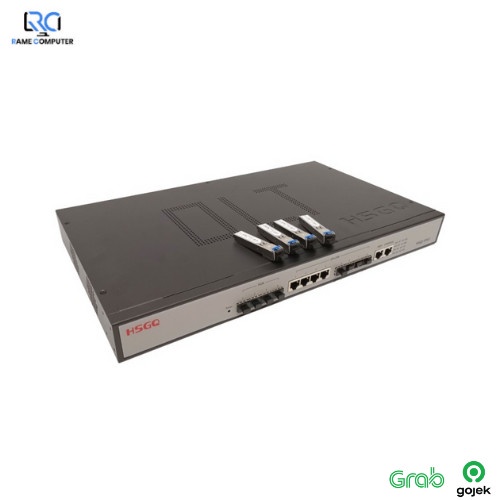

HSGQ E04R EPON OLT 4PON 1G FTTH EPON OLT 4 PON + 4 SFP PX20+++ M

Komputer & Aksesoris > Komponen Network > Modem & Router Wireless > HSGQ E04R EPON OLT 4PON 1G FTTH EPON OLT 4 PON + 4 SFP PX20+++ M

Tersedia

Periksa harganya...

Lihat tempat menjual

Toko:Magic Wireless Mall OfficialLihat semua produk Komputer & Aksesoris oleh Magic Wireless Mall Official

Pengiriman Ekspres
Barang yang diperiksa
Bayar di tempat berlaku
Kualitas, Prestise
Pengembalian produk
Dukung pembuatan faktur

Deskripsi Produk Spesifikasi

Detail HSGQ E04R EPON OLT 4PON 1G FTTH EPON OLT 4 PON + 4 SFP PX20+++ M

Model HSGQ-E04R
DDR 512M
FLASH 16M
Size (L*W*H)
Product size:440mm×185mm×44mm
Package size:520mm×372mm×87mm
Weight ;5kg
Uplink QTY 8
Copper
4*10/100/1000M auto-negotiable,RJ45
SFP
4 SFP slots
PON QTY 4
PhysicalInterface
4 SFP slots
Connector Type
1000BASE-PX20+/PX20++/PX20+++
Max splitting ratio 1:64
Management Ports
CONSOLE port/NMS PORT
Power Input
AC: 100V～240V AC 47/63Hz
Support standard
IEEE 802.3ah EPON
IEEE802.3(10Base-T)
IEEE802.3u(100Base-TX)
IEEE802.3z（1000BASE-X）
IEEE802.3ab（1000Base-T）
IEEE802.1Q(VLAN)
IEEEE802.1d(STP)
IEEEE802.1W(RSTP)
IEEE802.1p(COS)
IEEE802.1x(Port Control)
IEEE802.3x（flow-control）
Each OLT interface supports at most 64 ONU；
Transmission distance of each OLT is at most 20Km
PON fuction
