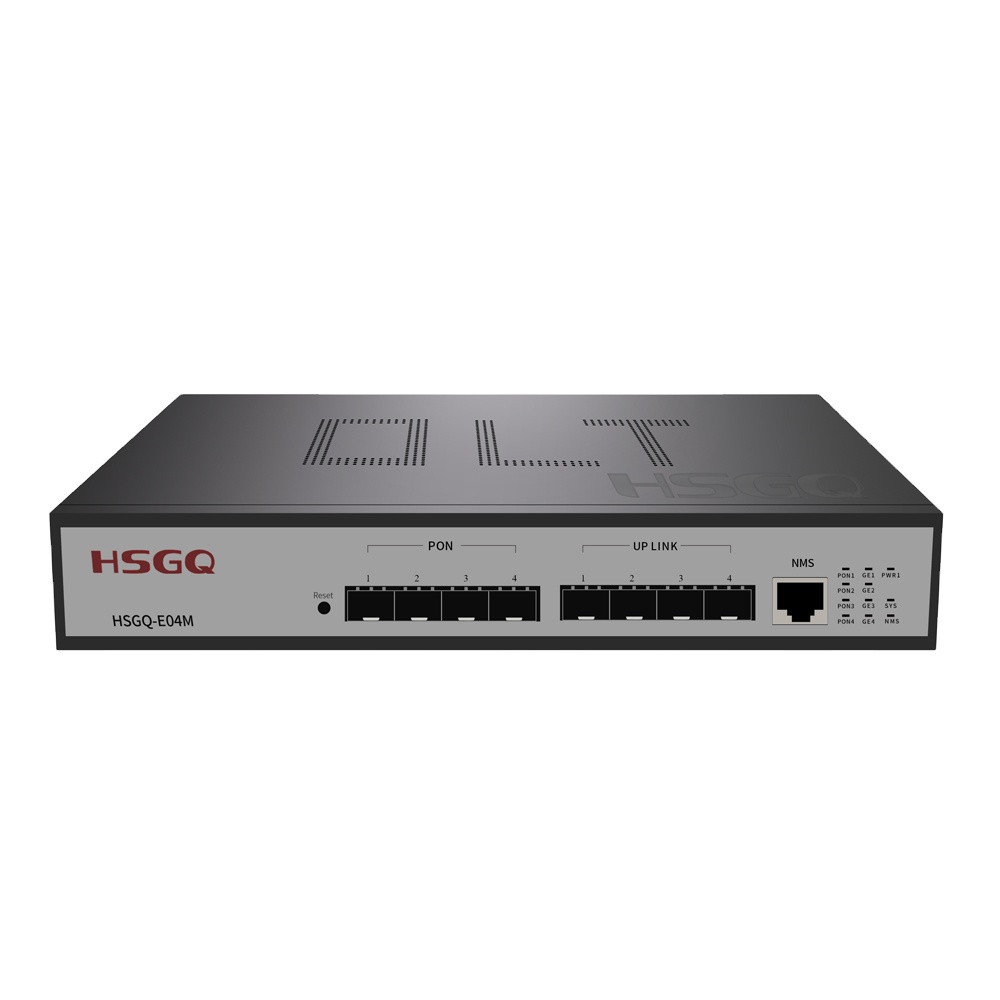

HSGQ E04M OLT 4 PON Port EPON OLT HSGQ E04M With 4SFP PX20+++ M

Detail HSGQ E04M OLT 4 PON Port EPON OLT HSGQ E04M With 4SFP PX20+++ M

HSGQ E04M
OLT EPON 4PON with 4 SFP PX20+++
# INCLUDE 4UNIT SFP PX20+++ & 2UNIT SRJ01 ODI
Feature:
• Support Full Wier-Speed Forwarding
• 16K MAC address table.
• Complete network management functions
• Support flexible DBA, up and down traffic speed control.
• Support IP ToS, IEEE802.1Q
• Support port aggregation.
• Port-based traffic control, traffic shaping.
• Support ONU, auto-discovery, and auto-registration.
• support the automatic loop-back test function.
• VLAN powerful features, including VLAN Stacking, Trunk, Translation.
• Support IGMP Function
• Support ACL /QoS
Model : HSGQ-E04M
DDR : 512M
Flash :32M
Product Size : 250mm x 180mm x 44mm
Uplink :
- QTY 4
- SFP 4Uplink 1.25G SFP slots
PON :
- QTY 4
- Physical Interface 4x PON 1.259 SFP slots
- Optical module Type 100013A5E-PX204/PX204+/PX20+++
- Max splitting ratio 1:64
Management Ports : NMS port
Power Input : AC 1000-2400 47/63Hz
PON Function :
- Support auto register
- Blacklist and whitelist Gnu
- 9134 configure
- P2P
- ONU authorization
Working Temperature : -10°C-60°C
Humidity : 544-95%
Maintance : Telnet remote maintenance
Support standard :
- IEEE 802.3ah EPON
- IEEE802.3(10Base-T)
- IEEE802.3u(10013ase-TX)
- IEEE802.3z (1000BASE-X)
- IEEE802.3ab (1000Base-T)
- IEE E802.1Q(VLAN)
- IEEEE802.1d(STP)
- IEEEE802.1WIRSTP)
- IEEE802.1pICOS)
- IEEE802.1x(Port Control)
- IEEE802.3x (flow-control)
Configuration and Management :
- CLI, WEB, SNMP/NMS
- SSI4v1/y2
- Software and bootrom upgrade by TFTP and FTP
- Record and download log
- Chinese/English command prompt
- Ping
- Debug diagnosis
- User management;
- Alarm management.
Layer 2function :
- Support 4094 VLAN;performance statistic
- 16K MAC address•mac address management
- Port mirror
- Port isolation
