Detail HSAIRPO XPW302 300Mbps wireless 2-PORTS GIGABIT XPON ONU
Xpon - Epon bisa Gpon bisa, tanpa ribet ganti2 ONU
Specifications
Technical Item Details
PON interface
1 G/EPON port(EPON PX20+ and GPON Class B+)
Upstream: 1310nm; Downstream: 1490nm
SC/UPC connector
Receiving sensitivity: ≤-27dBm
Transmitting optical power: 0~+4dBm
Transmission distance: 20KM
LAN interface 1x10/100/1000Mbps and 1x10/100Mbps auto adaptive Ethernet interfaces. Full/Half,
RJ45 connector
WIFI Interface
Compliant with IEEE802.11b/g/n
Operating frequency: 2.400-2.4835GHz
support MIMO, rate up to 300Mbps
2T2R,2 external antenna 5dBi
Support: Multiple SSID
Channel:13
Modulation type: DSSS?CCK and OFDM
Encoding scheme: BPSK?QPSK?16QAM and 64QAM

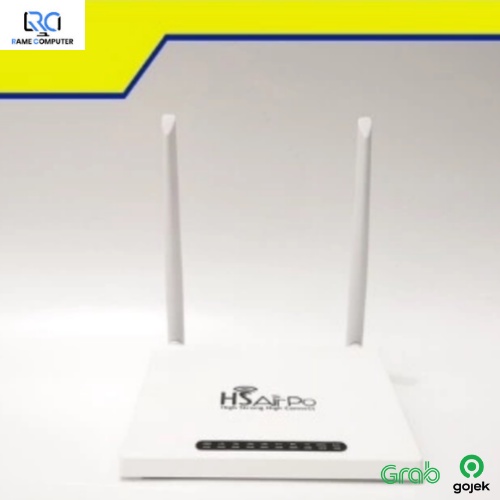

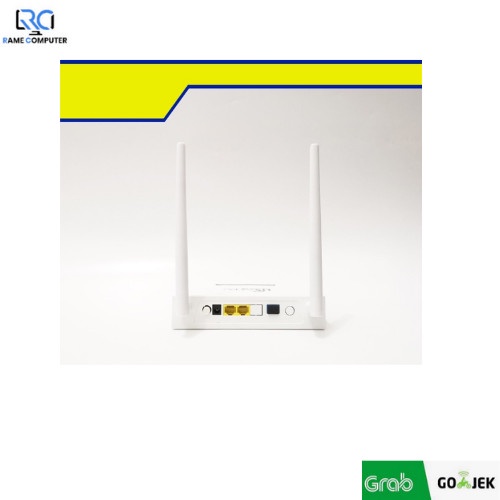

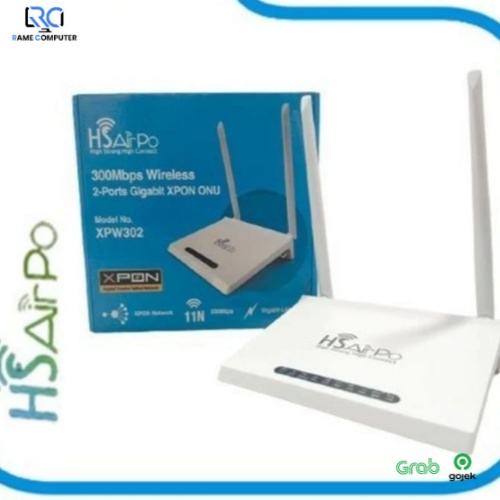

Gambar produk
