HSAIRPO XPW300 Wireless N 300Mbps XPON ONU/ONT

Detail HSAIRPO XPW300 Wireless N 300Mbps XPON ONU/ONT

Modem Router HAirpo XPW300 dilengkapi dengan LAN yang support Gigabit Ethernet (10/100/1000Mbps) dimana menjawab kebutuhan transfer data dengan kecepatan tinggi, selain itu dilengkapi dengan Wireless Type N yang sanggup mentransfer data hingga 300Mbps, Support GPon dan EPon dengan konektor SC, memungkinkan mengkoneksi melalui kabel Fiber Optic hingga jarak 20km.

SPESIFIKASI :
PON interface :
- 1 G/EPON port(EPON PX20+ and GPON Class B+)
- Upstream: 1310nm; Downstream: 1490nm
- SC/UPC connector
-Split Ratio: 1:64
- Receiving sensitivity: ≤-27dBm
- Transmitting optical power: 0~+4dBm
- Transmission distance: 20KM
LAN interface :
- 1x10/100/1000Mbps and 1x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
WIFI Interface :
- Compliant with IEEE802.11b/g/n
CATV Interface :
- RF, optical power : +2~-18dBm
- Optical reflection loss: ≥45dB
- Optical receiving wavelength: 1550±10nm
- RF frequency range: 47~1000MHz,
- RF output impedance: 75Ω RF output level: ≥ 82dBuV(-7dBm optical input)
- AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm
- MER: ≥32dB(-14dBm optical input), >35(-10dBm)
LED :
- 9 LED, For Status of WIFI?WPS?PWR?LOS?PON?LAN1~LAN2? WORN? NORMAL(CATV)
Push-Button :
- 4, for Function of Power on/off, Reset, WPS, WIFI
Operating condition :
- Temperature : 0?~+50?

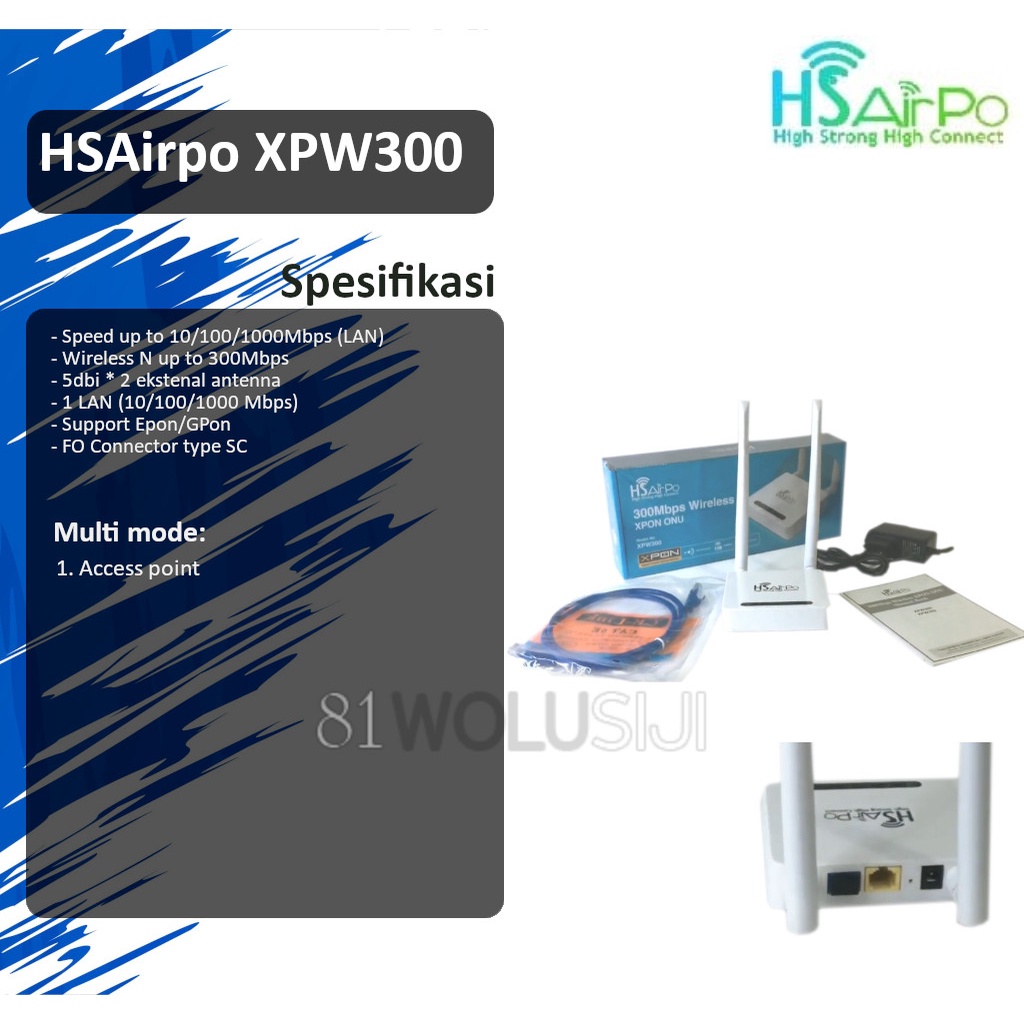

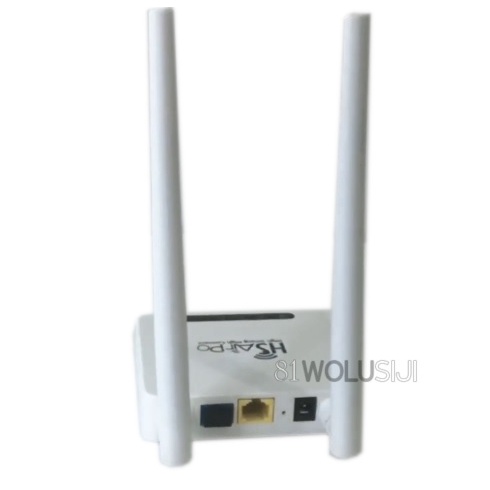

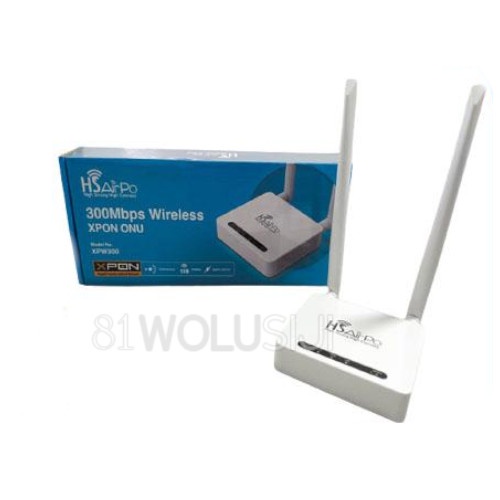

Gambar produk
