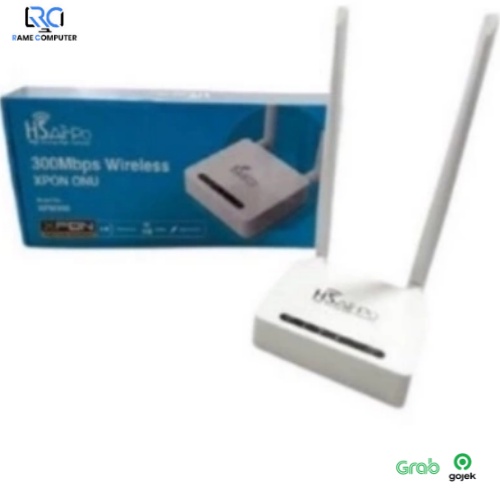

HSAIRPO XPW300 300Mbps wireless 1GE+WIFI 2.4 XPON ONU/ONT

Detail HSAIRPO XPW300 300Mbps wireless 1GE+WIFI 2.4 XPON ONU/ONT

Xpon - Epon bisa Gpon bisa, tanpa ribet ganti2 ONU
Support Epon = Huawei,ZTE, Hioso, BT-pon, Hsairpo
Support Gpon = Huawei, Zte, Bt-pon, Hsairpo

Specifications
Technical Item Details
PON interface :
- 1 G/EPON port(EPON PX20+ and GPON Class B+)
- Upstream: 1310nm; Downstream: 1490nm
- SC/APC connector
-Split Ratio: 1:64
- Receiving sensitivity: ≤-27dBm
- Transmitting optical power: 0~+4dBm
- Transmission distance: 20KM
LAN interface :
WIFI Interface :
- Compliant with IEEE802.11b/g/n
CATV Interface :
- RF, optical power : +2~-18dBm
- Optical reflection loss: ≥45dB
- Optical receiving wavelength: 1550±10nm
- RF output impedance: 75Ω RF output level: ≥ 82dBuV(-7dBm optical input)
- AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm
- MER: ≥32dB(-14dBm optical input), >35(-10dBm)
LED :
- 9 LED, For Status of WIFI?WPS?PWR?LOS?PON?LAN1~LAN2? WORN? NORMAL(CATV)
Push-Button :
- 4, for Function of Power on/off, Reset, WPS, WIFI
Operating condition :
- Temperature : 0?~+50?

Panel lights and Introduction
Panel lights andIntroduction
Pilot Lamp Status
WIFI : On, Blink, Off
WPS : Blink Off
PWR : On Off
LOS : Blink Off
PON : On Blink Off
LAN1~LAN2 : On Blink Off
WORN : On
(CATV) : Off
Normal : On
(CATV) : Off

Pilot Lamp Status Description
WIFI On The WIFI interface is up.
Blink The WIFI interface is sending or/and receiving data (ACT).
Off The WIFI interface is down.
WPS
Blink The WIFI interface is securely establishing a connection.
Off The WIFI interface does not establish a secure connection.
PWR
On The device is powered up.
Off The device is powered down.
LOS
