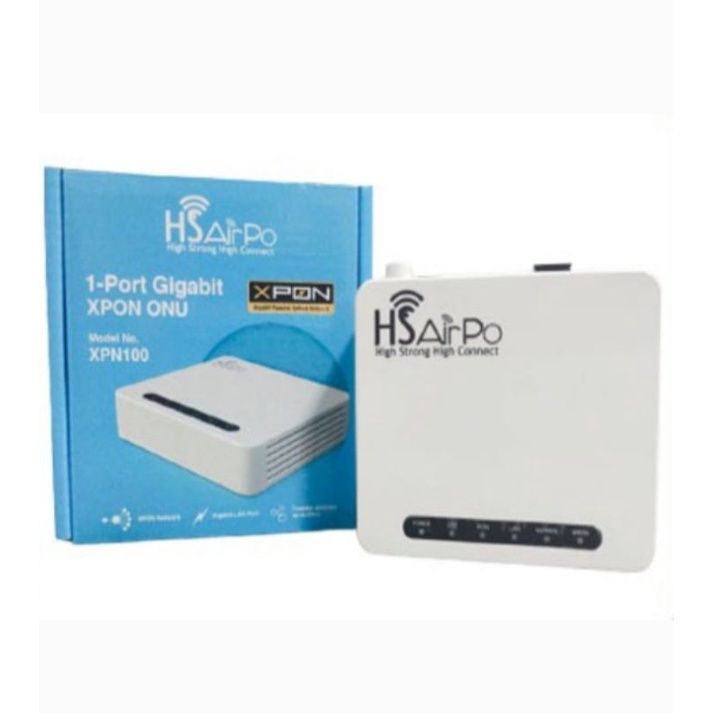

HSAirpo XPN100 Router Fiber Optik 1 Port Gigabit XPON ONU HS Airpo XPN100 N1

Detail HSAirpo XPN100 Router Fiber Optik 1 Port Gigabit XPON ONU HS Airpo XPN100 N1

Xpon - Epon bisa Gpon bisa, tanpa ribet ganti2 ONU
Support Epon = Huawei,ZTE, Hioso, BT-pon, Hsairpo
Support Gpon = Huawei, Zte, Bt-pon, Hsairpo

Specifications
Technical Item Details
PON interface
1 GPON/EPON port(EPON PX20+ and GPON Class B+)
Upstream: 1310nm,Downstream: 1490nm
SC/UPC connector
Receiving sensitivity: -27dBm
Transmitting optical power: 0~+4dBm
Transmission distance: 20KM
LAN interface
10/100/1000Mbps auto adaptive Ethernet interfaces.
10/100/1000M Full/Half, RJ45 connector
LED 4 LED, For Status of POWER?LOS?PON?LAN
Push-Button 2, for Function of Power on/off, Reset
Operating condition
Temperature : 0?~+50?
Humidity :10%~90%(non-condensing)
Storing Condition
Temperature : -40?~+60?
Humidity :10%~90%(non-condensing)
Power supply DC 12V/1A
Power Consumption <3W

Panel lights and Introduction
Pilot Status Description
POWER
On The device is powered up.
Off The device is powered down.
LOS
Blink The device doses not receive optical
signals.
Off The device has received optical signal.
PON
On The device has registered to the PON
system.
Blink The device is registering the PON
system.
Off The device registration is incorrect.
LAN On Port is connected properly (LINK).

Gambar produk
