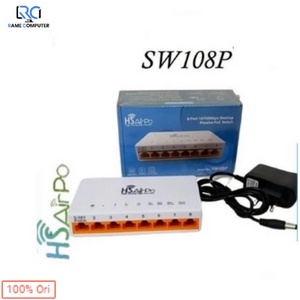

HSAirpo SW108P AirPo SW108P Hub Switch 8 Port 10/100 Mbps

Detail HSAirpo SW108P AirPo SW108P Hub Switch 8 Port 10/100 Mbps

Features :
- 8x10/100Mbps auto-negotiated RJ45 ports.
- Lan1 port support 5-24V passive PoE power supply
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
- Mini plastic design supports desktop placement or wall mount.
- 1K entry MAC address table and automatic address learning.
- Auto-MDI/MDIX eliminates the need for crossover cables.
- Store- and-Forward switching scheme.
- Performs non-blocking full wired speed.
Standards :
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Interface :
- 8*10/100Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
Power Supply :
- 9V DC/0.6A or 5-24V Passive PoE power Supply
LED :
-1* Power, 8*LANs
MAC Address Learning :
- Auto-learning, auto-aging
MAC Address Table :
- 1K
Network Media :
- 10BASE-T: UTP Cat 3 or above cable
- 100BASE-TX: UTP Cat 5, 5e or above cable
Backup Bandwidth :
- 1.6Gbps
Transmission Method :
- Store-and-forward
Package Contents :
- SW108P Desktop Switch *1
- Power Adapter*1
- Quick Installation Guide *1
Environment:
- Operating Temperature: 0?~40 ? (32 ?~104?)
- Storage Temperature: -40?~70 ? (-40 ?~158?)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
