HsAirpo SW108P 8port Switch hub 10/100Mbps

Detail HsAirpo SW108P 8port Switch hub 10/100Mbps

Deskripsi :
Features :
- 8x10/100Mbps auto-negotiated RJ45 ports.
- Lan1 port support 5-24V passive PoE power supply
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
- Mini plastic design supports desktop placement or wall mount.
- 1K entry MAC address table and automatic address learning.
- Auto-MDI/MDIX eliminates the need for crossover cables.
- Store- and-Forward switching scheme.
- Performs non-blocking full wired speed.

Standards :
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Interface :
- 8*10/100Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)

Power Supply :
- 9V DC/0.6A or 5-24V Passive PoE power Supply

LED :
-1* Power, 8*LANs

MAC Address Learning :
- Auto-learning, auto-aging

MAC Address Table :
- 1K

Network Media :
- 10BASE-T: UTP Cat 3 or above cable
- 100BASE-TX: UTP Cat 5, 5e or above cable

Backup Bandwidth :
- 1.6Gbps

Transmission Method :
- Store-and-forward

Package Contents :
- SW108P Desktop Switch *1
- Power Adapter*1
- Quick Installation Guide *1

Environment:
- Operating Temperature: 0?~40 ? (32 ?~104?)
- Storage Temperature: -40?~70 ? (-40 ?~158?)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing

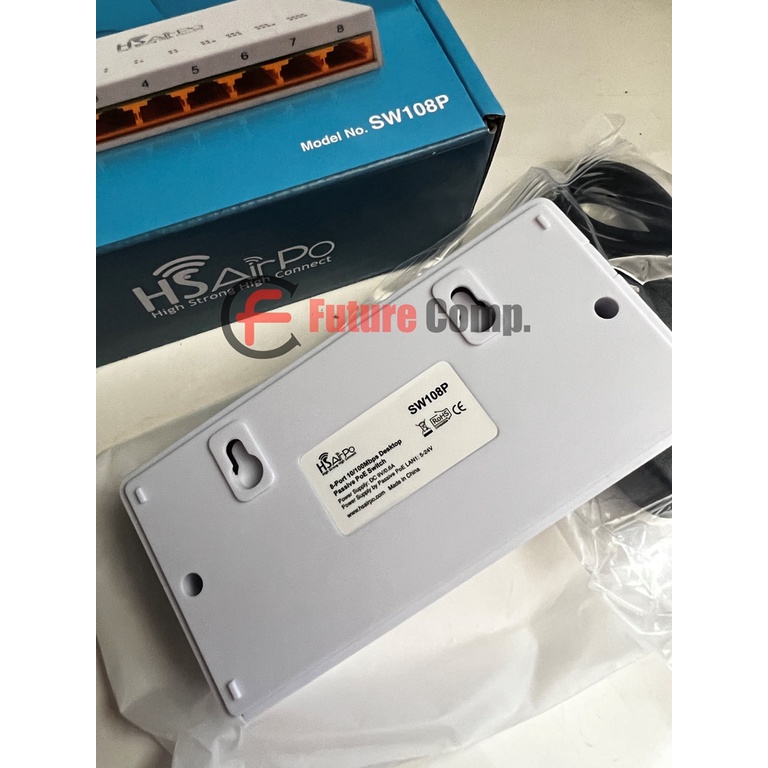

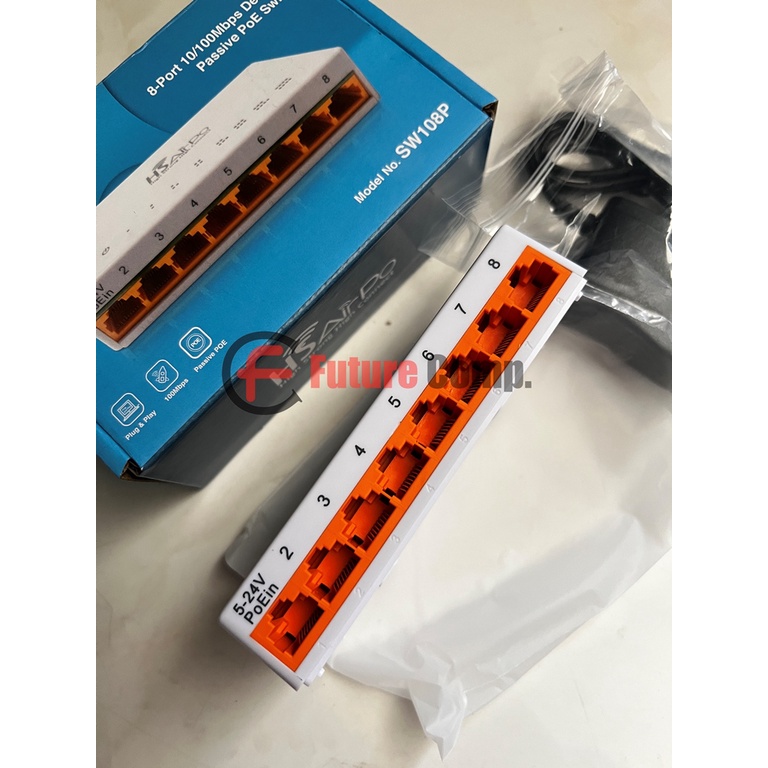

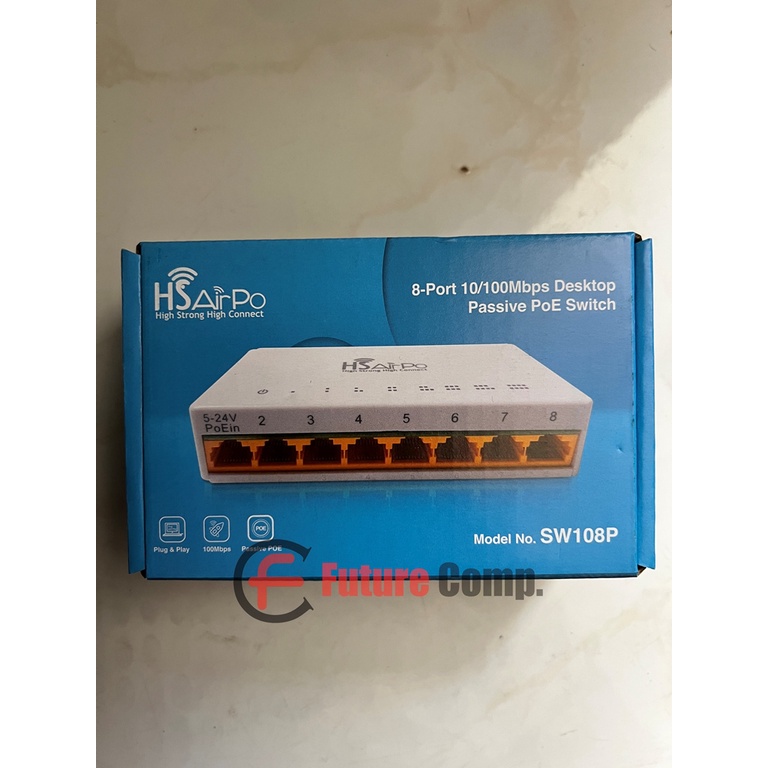

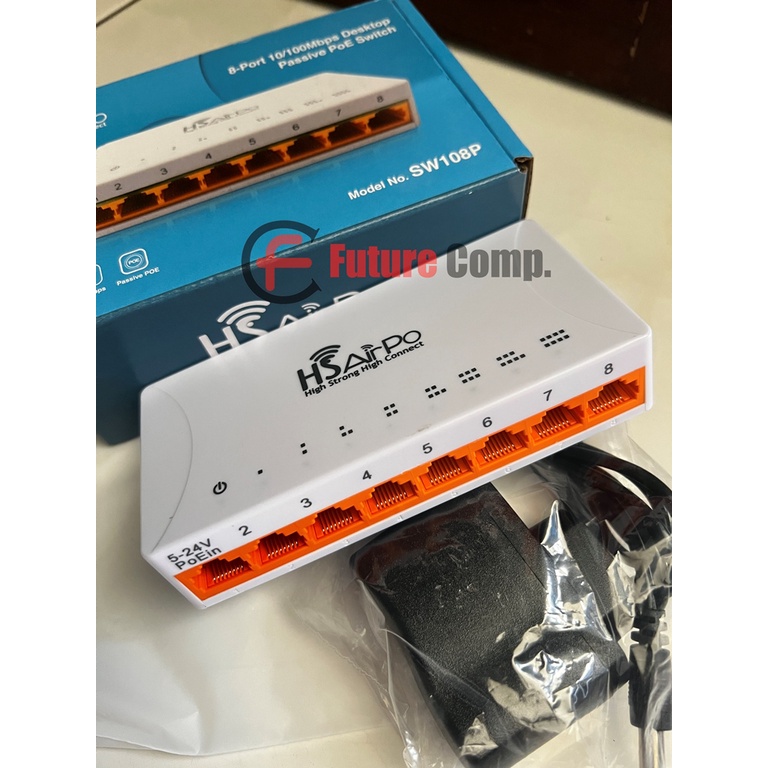

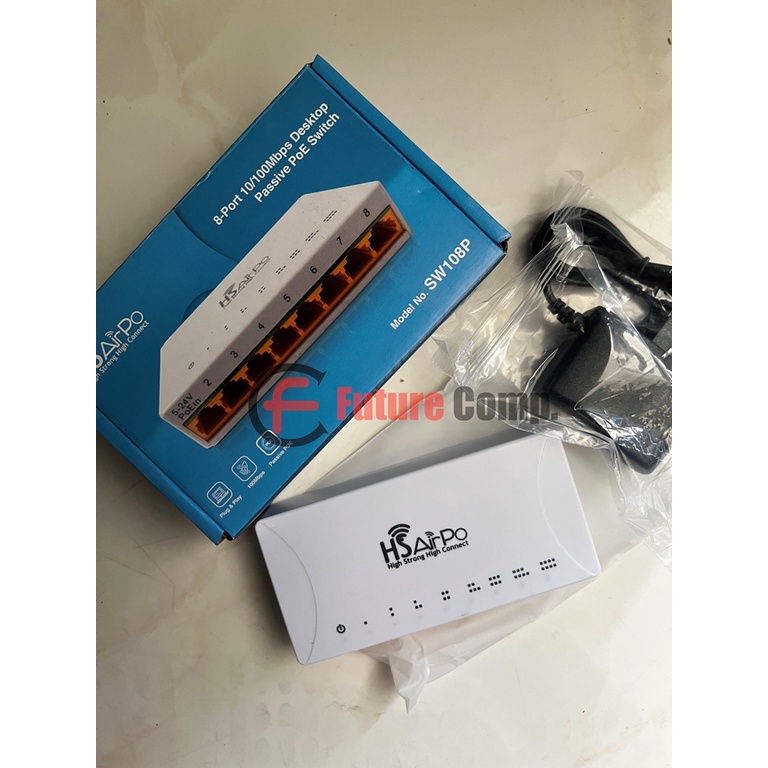

Gambar produk
