HSAIRPO SW105P 5port 10 100Mbps ETHERNET SWITCH HS AIRPO

Detail HSAIRPO SW105P 5port 10 100Mbps ETHERNET SWITCH HS AIRPO

Features

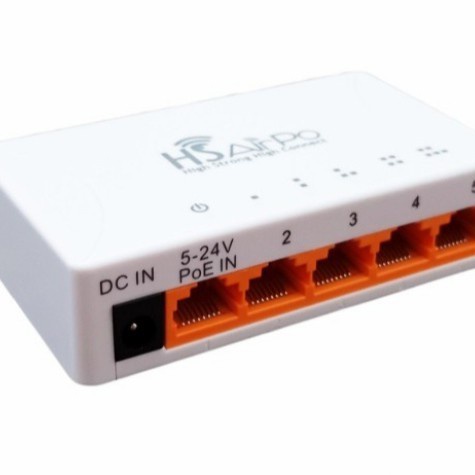

- 5 10/100Mbps auto-negotiated RJ45 ports
- Lan1 port support 5-24V passive PoE IN power supply
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
- Mini plastic design supports desktop placement or wall mount.
- 1K entry MAC address table and automatic address learning.
- Auto-MDI/MDIX eliminates the need for crossover cables.
- Store- and-Forward switching scheme.
- Performs non-blocking full wired speed.
Specifications:
General :
Standards : IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Interface : 5*10/100Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
Power Supply : 5VDC/1A, or LAN1 PORT 5-24V Passive PoE Power supply
LED : 1* Power, 5*LANs
MAC Address Learning : Auto-learning, auto-aging
MAC Address Table : 1K
Network Media :
- 10BASE-T: UTP Cat 3 or above cable
- 100BASE-TX: UTP Cat 5, 5e or above cable
Backup Bandwidth : 1Gbps
Transmission Method : Store-and-forward
Others

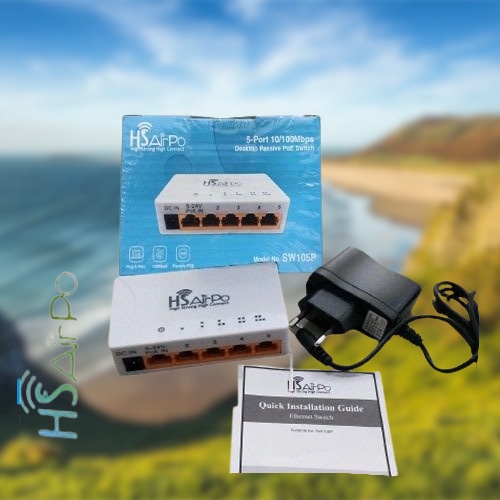

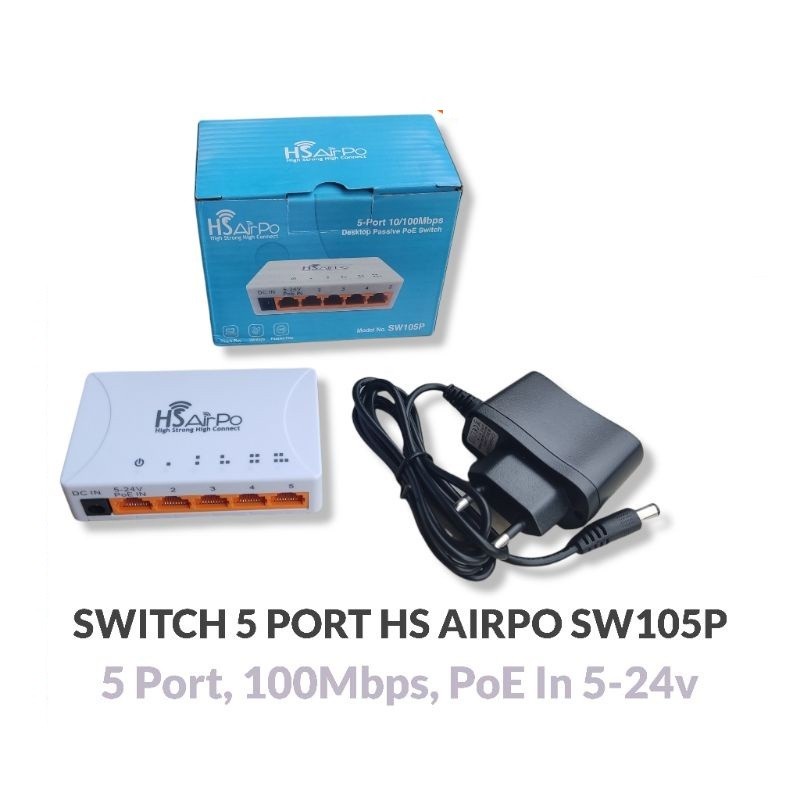

Package Contents :
- SW105P Desktop Switch *1
- Power Adapter*1
- Quick Installation Guide *1
Environment :
- Operating Temperature: 0?~40 ? (32 ?~104?)
- Storage Temperature: -40?~70 ? (-40 ?~158?)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
