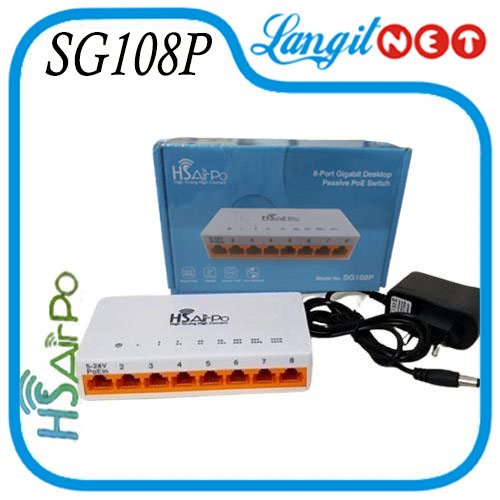

Features : - 8x10/100/1000Mbps auto-negotiated RJ45 ports - Lan1 port support 5-24V passive PoE power supply - Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode - 4K entry MAC address table and automatic address learning - Auto-MDI/MDIX eliminates the need for crossover cables - Store- and-Forward Switching scheme - Performs non-blocking full wired speed - Supports Jumbo Frame (9KByte) - Supports IGMP Snooping - Supports Giga Lite to improve transfer rate for 4-wire UTP gigabit network
Specifications : General : Standards : IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x Interface : 8*10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX) Power Supply : DC IN 9VDC/0.5A , LAN1 Support Passive POE 5-24V Power Supply LED : 1* Power, 8*LANs MAC Address Learning : Auto-learning, auto-aging MAC Address Table : 4K Network Media : - 10BASE-T: UTP Cat 3, 4, 5 cable - 100BASE-TX/1000BASE-T: UTP Cat 5, 5e or above cable Backup Bandwidth : 16Gbps Transmission Method : Store-and-forward
