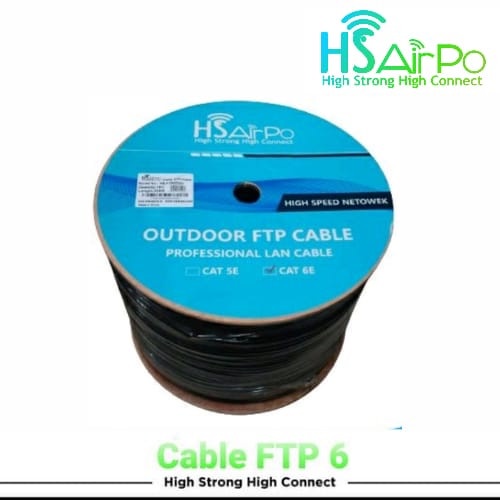

Detail HSAirPo HS-FTP6EOD Kabel LAN Network STP FTP Outdoor Double Jacket Cat 6 Cat6 Cat 6e Cat6e HS AirPo FTP6EOD M1

Specification :
Cabling Standards Meet:
10BASE-T, 100BASE-TX, 100BASE-TE, 1000BASE-T
The effective bandwidth of data layer is 1Gibit/s. The maximum transmission distance is 100meters
Cross isolation structure effective avoid the crosstalk between each pair of the cable

Specification:
-Structure: 4P +F+MAB Twisted Pair
-Conductor: Solid or stranded bare copper
-Insulation: HD-PE
-Shield: Mylar
-inner Shielded: AL-Foil 125%(min) Coverage
-Outer Shielded: Braiding 80%(min) Coverage
-Jacket: PVC
Outer jacket: LDPE
Rated Temperature:75?
Impedance:100±15%Ω
Frequency: 250MHz
Reference standard:YD/T1019-2001, ISO/IEC 11801, ANSI/TIA/EIA-568B,UL444
Flame Retardancy Standard: CM, CMR
