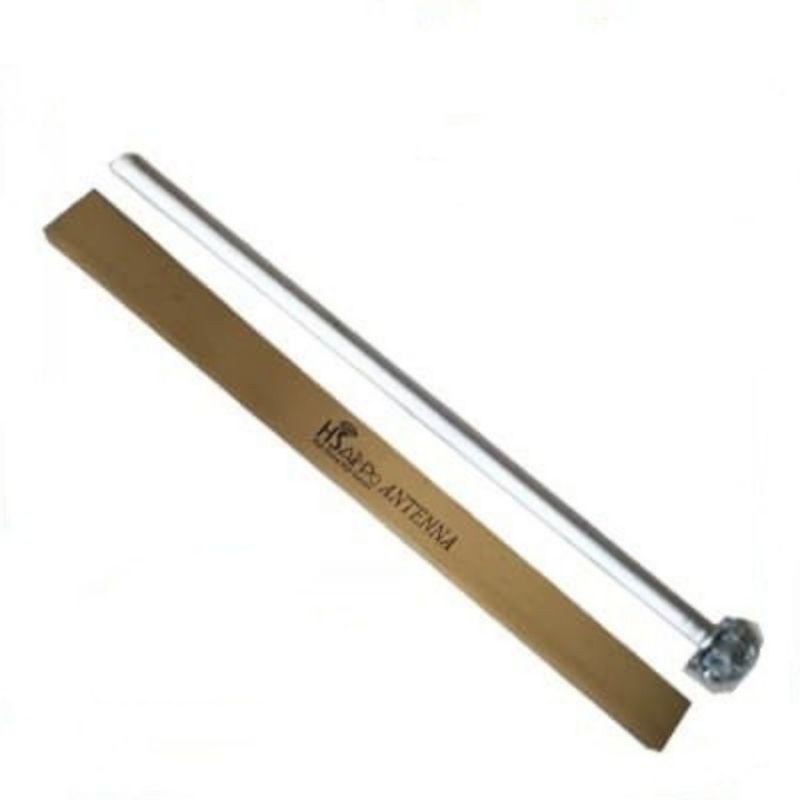

Detail HSAirPo HS-ANT2415 Antena Omni Outdoor Fiberglass 2.4GHz 15dBi 360 Derajat HS AirPo ANT2415 M1
-2.4GHz WLAN system
-Wireless video system
-Point to Multi-point system
Features:
-Low VSWR, High gain
-Anticorrosion ability
-DC ground
-N female connector
-Match with mounting screws
DATASHEET:
Model : HS-ANT2415
Frequency Range-MHz: 2400-2500
Bandwidth-MHz: 100
Gain-dBi: 15
Vertical -°: 5
VSWR: ≤1.5
Polarization: Vertical
Max Power-W: 100
Nominal Impedance-Ω: 50
Connector: N Female
Size-mm: Ф20*1500
Weight -Kg: 1
Working temperature -°C: -30~60
Related wind velocity -m/s: 60
Remarks: Fiberglass
Lihat Lebih Sedikit
Gambar produk
