HSAIRPO EPT1008H / HSGQ E08 EPON OLT 8PON 8SFP PX20xxx 7dB

Detail HSAIRPO EPT1008H / HSGQ E08 EPON OLT 8PON 8SFP PX20xxx 7dB

VIDEO PRODUK :
youtube.com/watch?v=q31ChdxZ4mY

SUDAH INCLUDE 8 UNIT SFP PX20+++

Technical Parameter :
MODEL : HS-EPT1008H
DDR : 512M
FLASH : 32M
PRODUCT SIZE : 442mm X 260mm X 44mm
PACKAGE SIZE : 520mm X 372mm X 87mm

UPLINK :
QTY : 8
Copper : 4*10/100/lOOOM auto-negotiable,RJ45
SFP : 4 1G SFP
PON :
QTY : 8
Physical Interface : 8 PON SFP slots
Optical module Type : 1000BASE-PX20+/ PX20++/PX20+++
Max splitting ratio : 1:64

Management Ports : CONSOLE port/ NMS port
Power Input : AC: lOOV-240V 47/63Hz

PON function :
- Support auto register
- Blacklist and whitelist onu
- DBA configure
- P2P
- ONU authorization

Working Temperature : -10C-60C
Humidity : 5%-95%

Support standard :
IEEE 802.3ah EPON
IEEE802.3(10Base-T)
IEEE802.3u{100Base-TX)
IEEE802.3z (lOOOBASE-X)
IEEE802.3ab (lOOOBase-T)
IEEE802.1Q(VLAN)
IEEEE802.ld(STP)
IEEEE802.1W(RSTP)
IEEE802.lp(COS)
IEEE802.lx{Port Control)
IEEE802.3x (flow-control)

Layer 2/ 3 function :
- VLAN,Q inQ,link Aggregation, broadcast strom control
- Support 4094 VLAN;performance statistic
- 16K MAC address;mac address management
- Port mirror
- Support IGMP Snooping/proxy
- Support 4K router hosts
- Support 64 router subnets
- Port isolation
- User management
- ACL access control based on data stream
- QoS based on port, VID, TOS and MAC address;
- Encrytion of PON port transmitting data
- Support 802.lX authentication

Configuration and Management :
- CLl,WEB,SNMP / NMS
- SSHvl/v2
- Software and bootrom upgrade by TFTP and FTP
- Record and download log
- Chinese/ English command prompt
- Ping
- Debug diagnosis
- User management;
- Alarm management.

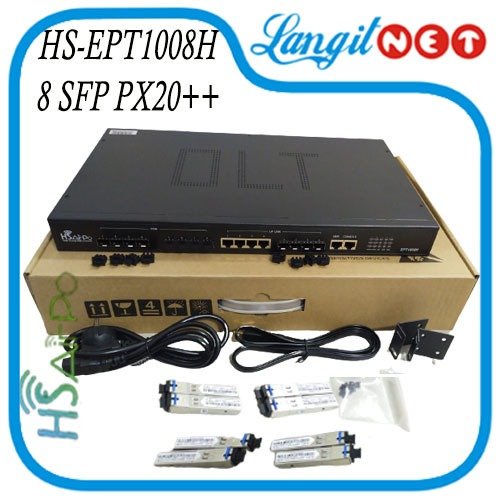

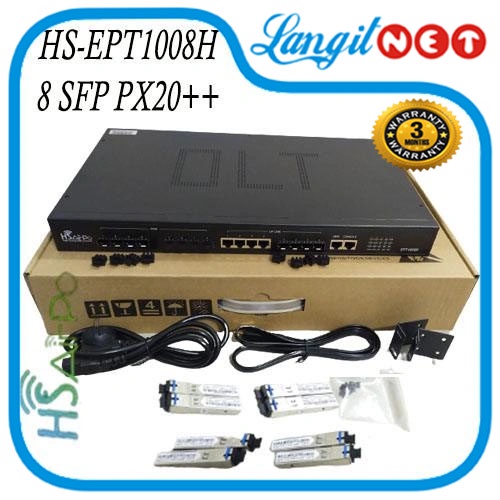

Gambar produk
