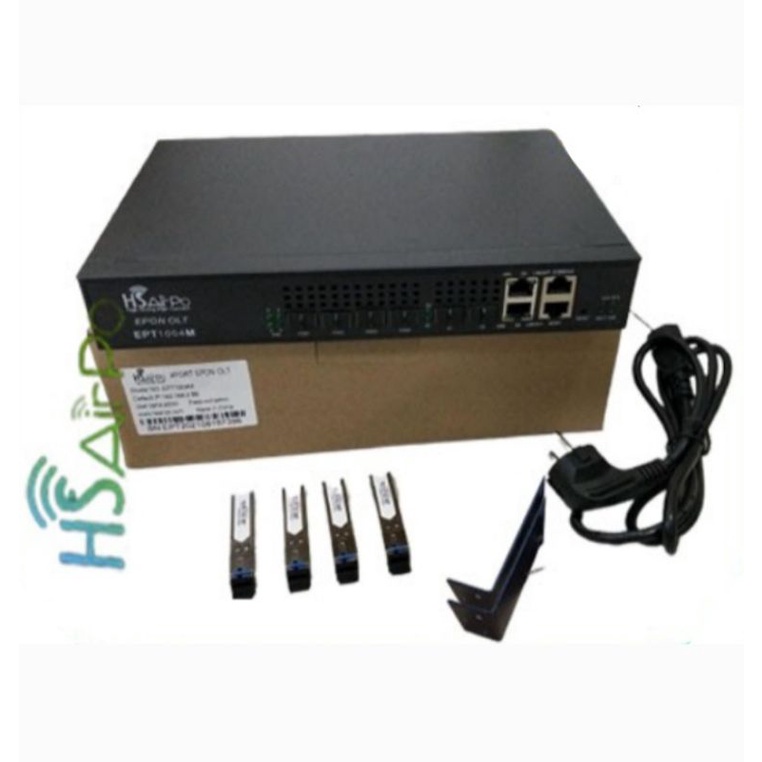

HSAirPo EPT1004M OLT 4 Port Mini EPON + 4 Module SFP HS AirPo EPT1004M M1

Detail HSAirPo EPT1004M OLT 4 Port Mini EPON + 4 Module SFP HS AirPo EPT1004M M1

- Support WEB/SNMP/CLI management
- Apply fortown,villagefiber network and surveillance, apply for FTTX network


Specification:
Operating wavelength :
- 1310(RX) /1490(TX)
Optical power :
-(+2.5 ~ +7dBm)
Receiving sensitivity :
-(-30dBm)
Max distance :
-20km
Max splitter ratio :
-1:64
Capacity :
-4 PON, maximum 256pcs ONU
MAC :
-8k
Uplink port :
-2 1000M SFP ports + 2 1000M TP ports (support 1000M only)
PON port :
-4 SFP PON ports
Control port :
-1 Console(RJ45), to debug the device
-1 MGMT management port
MTBF :
-100,000 hours
EPON traits :
-Support IEEE802.3ah
-Support DBA with minimum1Kbps granularity adjustable
-Support 1Gbps up link and down link symmetrical bandwidth
-Support AES-128 encryption to each Logical Link Identifier
-Support powerful OAM function, implement telnet management, maintenance and upgrade
-Support auto discovery and auto register of ONU (real-time operation)
Protocols supported :
-Support IEEE802.3?IEEE802.3u?IEEE802.3ab?IEEE802.3z
-Support IEEE802.1Q VLAN?IEEE802.1d Spanning Tree
-Support IEEE 802.1P QoS?IEEE802.3X Flow Control
Other functions:
-Support 1GMPv1/v2 protocol report, query and leave message mouse
-Support ONU remote configure and upgrade:
-Support real-time alarm detection, accurate fault location
Management :
WEB/SNMP/CLI
Power :AC100~240V 50/60HZ, DC-48V
Power Consumption : 20W
