HSAIRPO EPT1004H/ HSGQ E04 EPON OLT 4PON 4SFP PX20xxx 7dB

Detail HSAIRPO EPT1004H/ HSGQ E04 EPON OLT 4PON 4SFP PX20xxx 7dB

VIDEO PRODUK :
youtube.com/watch?v=FALNOH5tmRM

KODE POSTEL :
79018/SDPPI/2021

By : HSGQ
EPT1004H = HSGQ E04 pabrikan sama, hardware firmware sama, yg membedakan Logo dan EPT1004H sudah sertifikasi Postel
Model : EPT1004H
DDR : 512M
Flash : 32M
Uplink :
Q'ty : 8
Copper : 4*10/100/1000M auto-negotiable,RJ45
SFP : 4 Uplink SFP solts
PON :
Q'ty : 4
Physical Interface : 4 PON SFP slots
Optical Module Type :1000BASE-PX20+++
Max Splitting : 1-64
Management Ports : CONSOLE-port/NMS Port
Power Input : AC:100V-240V 47/63hz
PON function :
Suport auto register
Blacklist and whitelist onu
DBA configure
P2P
ONU authiruzation
Working Temperature : -10?--60?
Humidity : 5%-95%
Maintenance :telnet remote maintenance
Support standard : IEEE 802.3ah EPON
IEEE 802.3(10Base-T)
IEEE802.3u(100Base-Tx)
IEEE802.3z(1000Base-X)
IEEE802.3ab(1000Base-T)
IEEE802.1Q(VLAN)
IEEE802.1W(RSTP)
IEEE802.1p(COS)
IEEE802.1x(Port Control)
IEEE802.3x(flow-control)
Confihuration and management :
CLI,WEB,SNMP/NMS
SSHv1/v2
software and bootrom update by TFTP and FTP
Record and download log
Chinese/English command prompt
Ping
debug diagnosis
User Management
alarm management
layer 2/3 function :
VLAN,QinQ,link Aggregation, broadcast strom control
Support 4094 VLAN;performance statistic
16K MAC address;mac address management
Port mirror
Support RSTP and MSTP
Support IGMP Snooping /proxy
Support 512M router hosts
Supoort 64 router subnets
user management
Port isolation
ACL access control based on data stream
QoS based on port,VID,TOS and MAC address
Encrytion of PON port transmitting data
Support 802.1x authentication

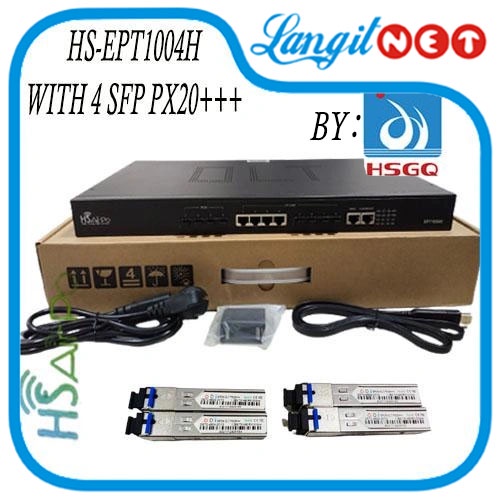

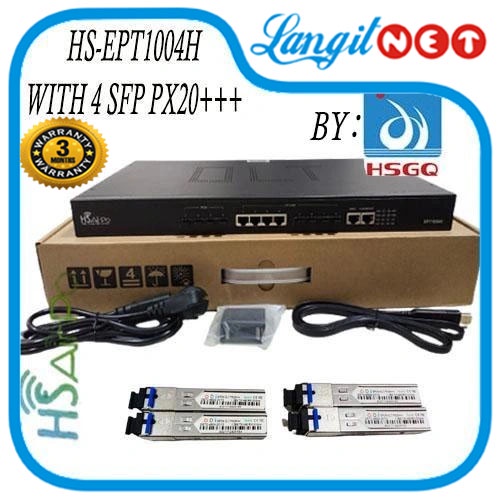

Gambar produk
