HSAIRPO EPT1004GH / HSGQ XE04 EPON OLT 4PON 10G 4SFP PX20xxx 7dB

Detail HSAIRPO EPT1004GH / HSGQ XE04 EPON OLT 4PON 10G 4SFP PX20xxx 7dB

VIDEO PRODUK :
youtube.com/watch?v=ElTU9eDWoZc

SUDAH INCLUDE 4 UNIT SFP PX20+++

Model : EPT1004GH
DDR : 512M
FLASH : 16M
Uplink QTY : 8
Copper : 4*10/100/1000Mauto-negotiable,RJ45
QTY : 4
Physical Interface : 4 SFP slots
Connector Type : 1000BASE-PX20+/PX20++/PX20+++
Max splitting ratio : 1 : 64
Management Ports : CONSOLE port/NMS PORT
Power Input AC: 100V~240V AC 47/63Hz
Support standard :
IEEE 802.3ah EPON
IEEE802.3(10Base-T)
IEEE802.3u(100Base-TX)
IEEE802.3z(1000BASE-X)
IEEE802.3ab(1000Base-T)
IEEE802.1Q(VLAN)
IEEEE802.1d(STP)
IEEEE802.1W(RSTP)
IEEE802.1p(COS)
IEEE802.1x(Port Control)
IEEE802.3x(flow-control)
Each OLT interface supports at most 64 ONU;
Transmission distance of each OLT is at most 20Km
PON function :
Support auto register and confirm
Blacklist and whitelist onu
DBA configure
P2P
ONU authorization
Layer 2/3 function :
VLAN,QinQ,link convergency, broadcast strom control
Support at most 4094 VLAN;performance statistic
16K MAC address;mac address management
Port mirror / Static Trunk
Support RSTP
Storm control
Support IGMP Snooping/proxy
Support 512 router hosts
Support 64 router subnets
Limit quantity of maximum user at each port
Port isolation
Packe storm control
ACL access control based on data stream
QoS based on port, VID, TOS and MAC address;
Encrytion of PON port transmitting data
Configuration and Management :
SNMP/NMS
WebGUI management
CLI, SNMP, TELNET,cluster etc.
SSHv1/v2
Software and bootrom upgrade by TFTP and FTP
Local server syslog to record system log
Chinese/English command prompt
Ping and traceroute
Debug/Log management
User management;
Alarm management.
Lightning : Service port has lightning protection
Maintenance : Telnet remote maintenance
Temperature : -10?~60?
Humidity : 5%~95%

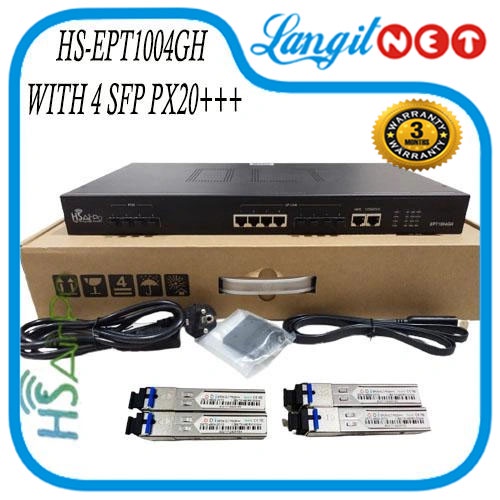

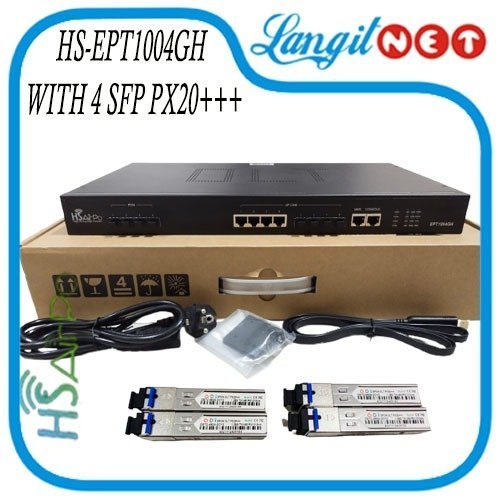

Gambar produk
