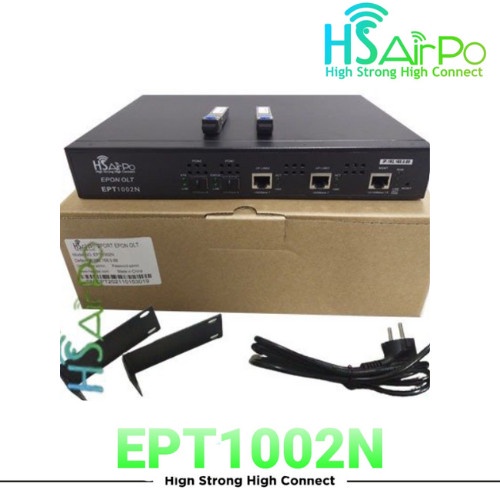

HSAIRPO EPT1002N EPON OLT 2PON EPON OLT 2SFP PON ports with 2 PX20xxx M

Detail HSAIRPO EPT1002N EPON OLT 2PON EPON OLT 2SFP PON ports with 2 PX20xxx M

INCLUDE 2 SFP PX20+++
SFP RJ45 UPLINK PORT
Overview
EPT1002 is a standalone 2-PON OLT,working with different brands ONU and ODN, to establish a passive optic network. It supports 2-PON, maximum 128 ONUs access. It supports 1020km transmission distance at the base of high bandwidth, full line speed L2/L3 transition capacity. It supports SNMP management
Feature
Supply 2 SFP PON ports, 2 1000M RJ45 uplink ports, 1 10/100M RJ45 management port
Support SNMP management and WEB management
Each PON port support 1.32 split ratio, total 64 ONUs access,maximum 128
Distance can reach 20km under 1:32 split ratio,maximum 1:64
Support to work with HA400/HA7200 series ONUs to establish passive network
1U rack design, inside fan,better for heat dissipating and reliability operating
Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,IPTV and other IP services access
Application
1000M point to multi-point optic passive network
Technical Specification
Parameter Specifications
Operating wavelength 1310RX/1490TX
Optical power +0 ~ +7dBm
Receiving sensitivity -27dBm
Max distance 20km
Max splitter ratio 1:64
Capacity 2 PON, standard: 64 ONUs maximum:128 ONUs
MAC 8K
Uplink port 2 1000M Ethernet RJ45 ports
PON port 2 SFP fiber ports
Control port RJ45 console port, to debug the device
MTBF 100,000 hours
EPON traits
Support IEEE802.3ah
Support DBA with minimum1Kbps granularity adjustable
Support 1Gbps up link and down link symmetrical bandwidth
Support AES-128 encryption to each Logical Link Identifier
Support powerful OAM function, implement telnet management, maintenance and upgrade
Support auto discovery and auto register of ONU (real-time operation)
Protocols supported
Support IEEE802.3, IEEE802.3u, IEEE802.3ab
Support IEEE802.1Q VLAN
Support IEEE 802.1P QoS
Management CLI and GUI, SNMP, WEB
Working Environment
Parameter Specification
Power supply AC100--240V
Power consumption 11W
