HSAirpo EPON OLT HS-EPT1004 with 4SFP 4PON PX20+++ 7db

Detail HSAirpo EPON OLT HS-EPT1004 with 4SFP 4PON PX20+++ 7db

HSAirpo EPON OLT HS-EPT1004 L3,4PON,4SFP+4RJ45,
WITH PX20+++
1U 19 inch standard box EPON OLT with 4 PON ports
Compliant with IEEE802.3ah YD/T1475-2006—EPON and China Telecom EPON Technical Requirements
QoS based on port, VID, TOS and MAC address(32K Mac address)
Support priority queue scheduling, support SP, WRR or SP + WRR scheduling algorithm
Support 4096 VLAN, transparent transmission and conversion, support VLAN stacking (QinQ)
Support 32K MAC’s line speed learning and aging, support MAC address restriction
Support IEEE 802.1d (STP), 802.1w (RSTP) and MSTP Spanning Tree Protocol
Support multicast Groups, IGMP v1/v2 snooping and IGMP Proxy
Support port-based rate limitation and bandwidth control
Support PON line AES and triple churing encryption
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto-MAC binding and filtering, support the ONU offline business configuration and automatically configure, manual/auto authentication
Support the use of the ACL rules for packet filtering
Support SNMP, telnet, CLI, OAM and Web management
Provide logs, alarms and performance statistics
Support remote software upgrade
PON standard. EPON IEEE802.3ah

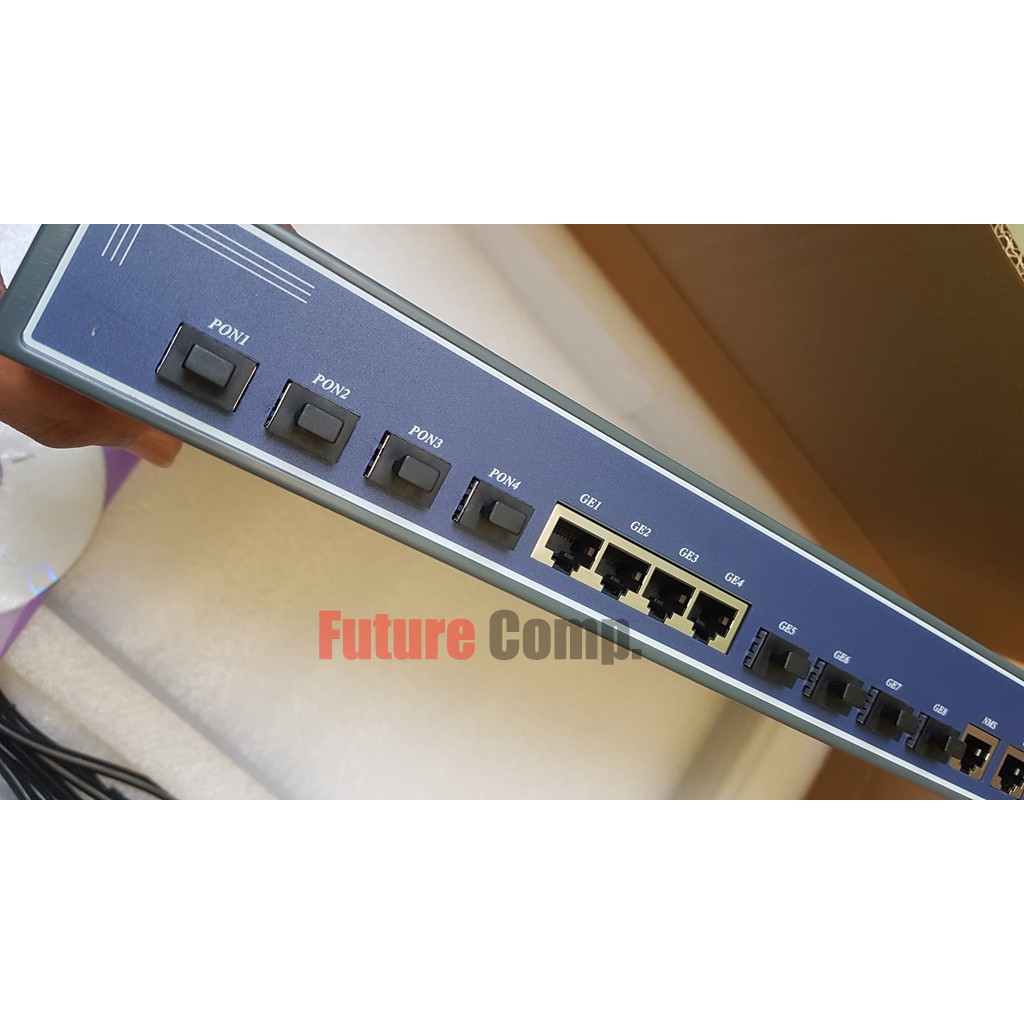

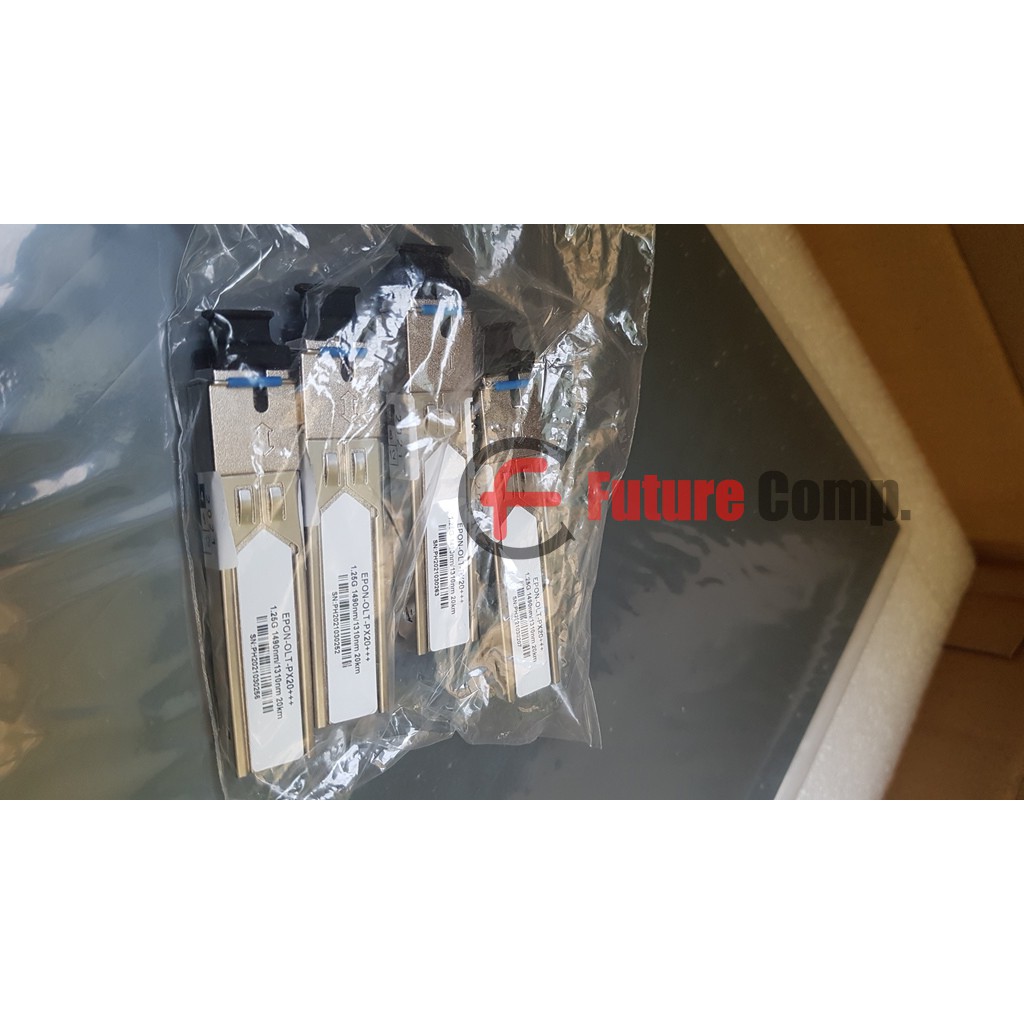

PON interface 4*EPON SFP Ports (PX20+++), Receiving sensitivity: ≤-30dBm(Saturation Optical -6dBm). Power,
Transmitting optical power: +2~+7dBm
Transmission distance: 20KM. Max splitting ratio1:64
Speed Upstream 1.25G
Downstream 1.25G
Wavelength nm Tx1310, Rx 1490

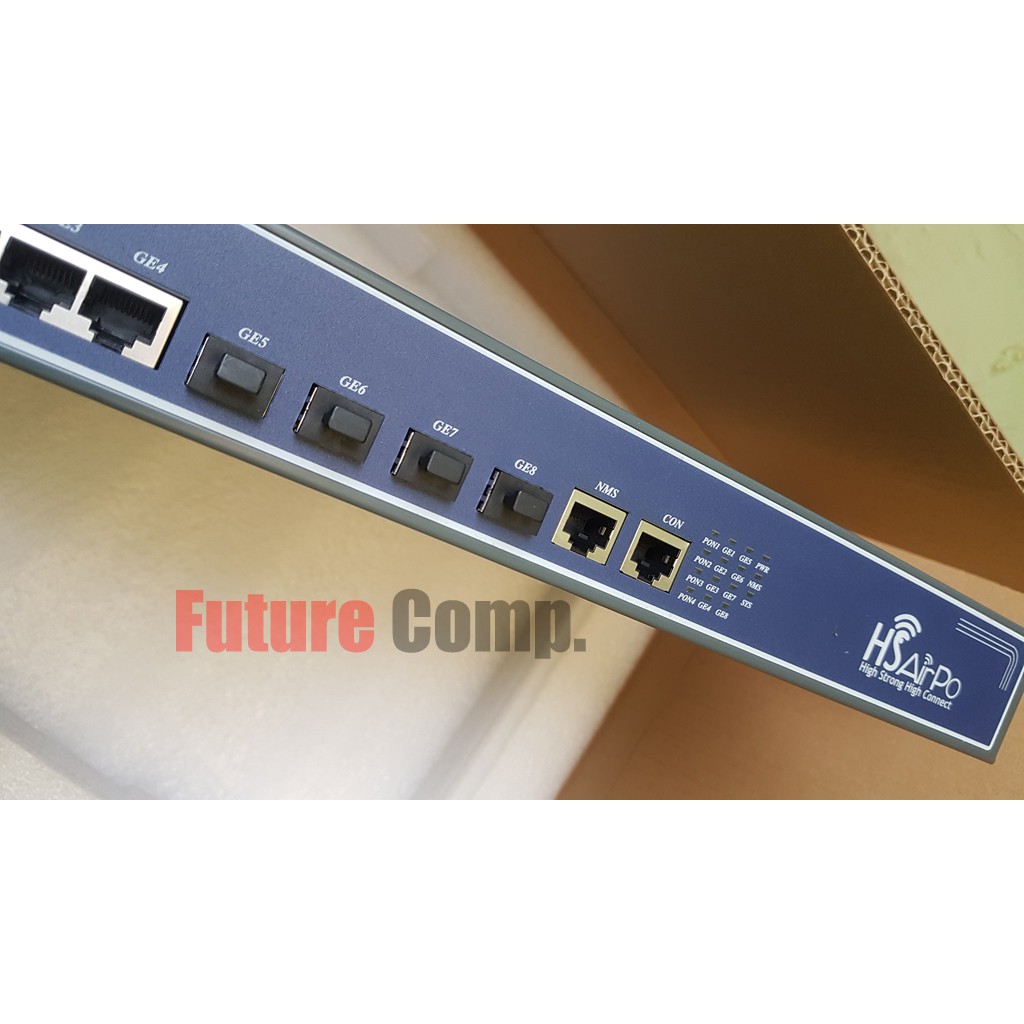

Uplink GE 4*copper ethernet ports 10/100/1000M auto-negotiation
SFP 4*GE SFP

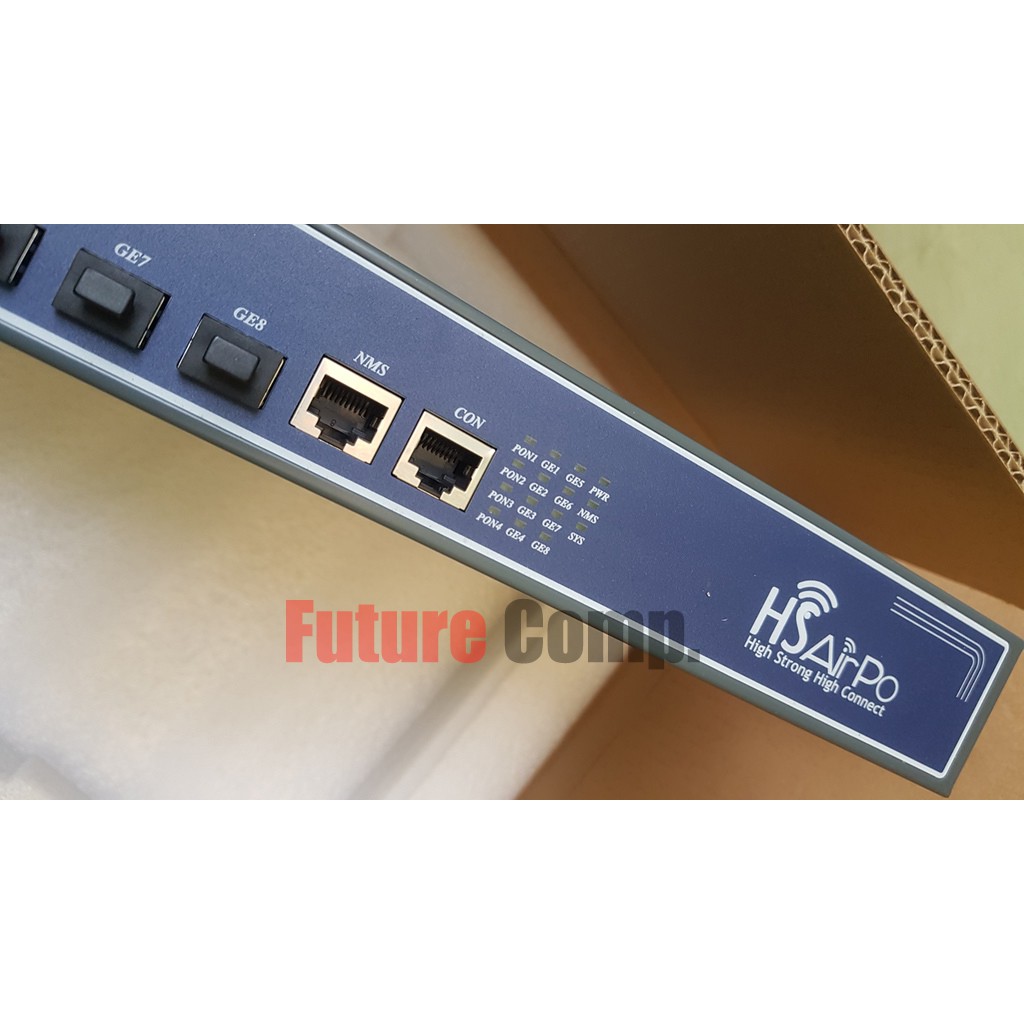

Management Ports 1*10/100BASE-T out-band port, 1*CONSOLE port
Backplane Gbps 128
MAC table K 32
Spanning
Tree protocol Support IEEE 802.1d (STP), 802.1w (RSTP) spanning tree protocols
QoS Support 802.1p priority queue scheduling
Support SPWRR and SP+WRR scheduling algorithms
Operating condition ? Operating temp: -5 ~ +55
Storing condition ? Storing temp: -40 ~ +85
Humidity % 5~90(non-condensing)
