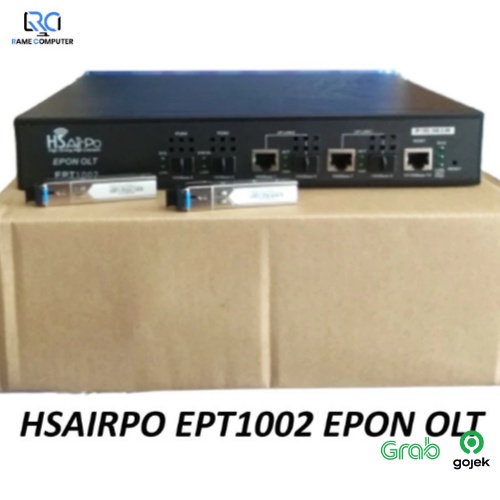

HSAirpo EPON OLT HS EPT1002 2PON 2SFP PON ports with 2 PX20xxx SFP

Detail HSAirpo EPON OLT HS EPT1002 2PON 2SFP PON ports with 2 PX20xxx SFP

SUDAH INCLUDE 2 SFP PX20+++
Features :
-2 10/100/1000M RJ45 uplink port / 2Gigabit SFP ports optional.
-2 PON port supports Max 64 pcs ONU.
-supports 10~20km transmission distance.
- Power supply: AC 220V & Power Consumption 11W.

Specifications :
Technical Specification
Parameter : Specifications
Operating wavelength : 1310(RX)/1490(TX)
Optical power : +2 ~ +7dBm
Receiving sensitivity : -27dBm
Max distance : 20km
Max splitter ratio : 1:32
Capacity : 2 PON, 64 ONUs
MAC : 8K
Uplink port 2 10/100/1000 Ethernet RJ45 ports / 2 Gigabit SFP ports
optional
PON port : 2 SFP PON ports
Control port : RJ45 console port, to debug the device
MTBF : 100,000 hours
EPON traits :
- Support IEEE802.3ah
- Support DBA with minimum1Kbps granularity adjustable
- Support 1Gbps up link and down link symmetrical bandwidth
- Support AES-128 encryption to each Logical Link Identifier
- Support powerful OAM function, implement telnet management,
maintenance and upgrade
- Support auto discovery and auto register of ONU (real-time
operation)
Protocols supported :
- Support IEEE802.3, IEEE802.3u, IEEE802.3ab
- Support IEEE802.1Q VLAN

Working Environment :
Parameter : Specification
Power supply : AC220V
Operating temperature : -10~55?
Storage temperature : -40~70?
Humidity : 5%~90% non-condensing
