HsAirpo CPE200 4G LTE Wireless Outdoor All Operator

Detail HsAirpo CPE200 4G LTE Wireless Outdoor All Operator

[UPDATE INFO : UNTUK UPDATE FIRMWARE bisa masuk ke web hsairpo.co.id klik Bantuan -> pilih tutorial upgrade CPE200 , disana ada file download dan cara upgradenya]

HsAirpo CPE200 4G LTE Wireless Outdoor
Garansi Resmi 1 Tahun !!

Preview product :

Terdapat Slot Simcard 4G LTE untuk segala operator, IMEI juga bisa diganti sesuai kebutuhan.

Motherboard chipset
Mianly chipset: MTK7628

FLASH: 8M
Sdram:64M

Antenna
2.4GHz: 2X9dbi Omini direction
4GHz:1X9dBi Omini Direction

4G Specification
150Mbps downlink and 50Mbps uplink data rate
4G Module:EC200T-CN(Qualcom)

Transmission
2.4GHz:300Mbps
WIFI RF Frequency
2412GHz~2472GHz
WIFI Channels
1-13 rate
LTE cat4:150Mbps(DL MAX) 50Mbps(UL MAX)
Frequency Range(EC200T)
LTE FDD:B1/B3/B5/B8
LTE TDD:B34/B38/B39/B40/B41
WCDMA:B1/B5/B8
GSM:B3/B8

Physical Interface
1*10/100Mbps LAN RJ45Port(Support DC24VPOE power supply)
1*10/100Mbps LAN RJ45 port
1*Reset Button
1*Micro SIM Cassette
Indicator Light
1*4G, 1*SYS, 1*LAN,1*
Power Supply
24V POE Powe Supply
DC:12V/1A

Protection Level
IP65
Working Environment
Working temperature:-20?~70?
Storage temperature:-40?~75?
Working Humidity:10%~90%RH Non-condensing
Storage Humidity:5%~95%RH Non-condensing
RF Frequency
2412GHz~2472GHz
Channels
1.2-13
Transfer Rate
11a/g:54M,48M,36M,24M,18M,12M,9M,6Mbps HT20:7.2M,14.4M,21.7M,28.9M,43.3M,57.8M,65M,72.2M,14.4M,28.9M,43.3M,57.8M,86.7M,115.6M,130M,144.4M HT40:15M,30M,45M,60M,90M,120M,135M,150M,30M,60M,90M,120M,180M,240M,270M,300M

RF output Power
802.11b: 11Mbps 20±2dbm
802.11g 6Mbps(-25@EVM) 18.0±2.0dBm
54Mbps(-25@EVM) 17.0±2.0dBm
HT20(-30@EVM) MCS7 15.0±2.0dBm
HT40(-30@EVM) MCS7 15.0±2.0dBm

Reception Sensitivity
IEEE802.11b 11Mbps ?-90dBm
IEEE802.11g 6Mbps ?-88dBm
IEEE802.11n HT20 MCS7 ?-66dBm
Modulation type
OFDM/BPSK/QPSK/DQPSK/DBPSK

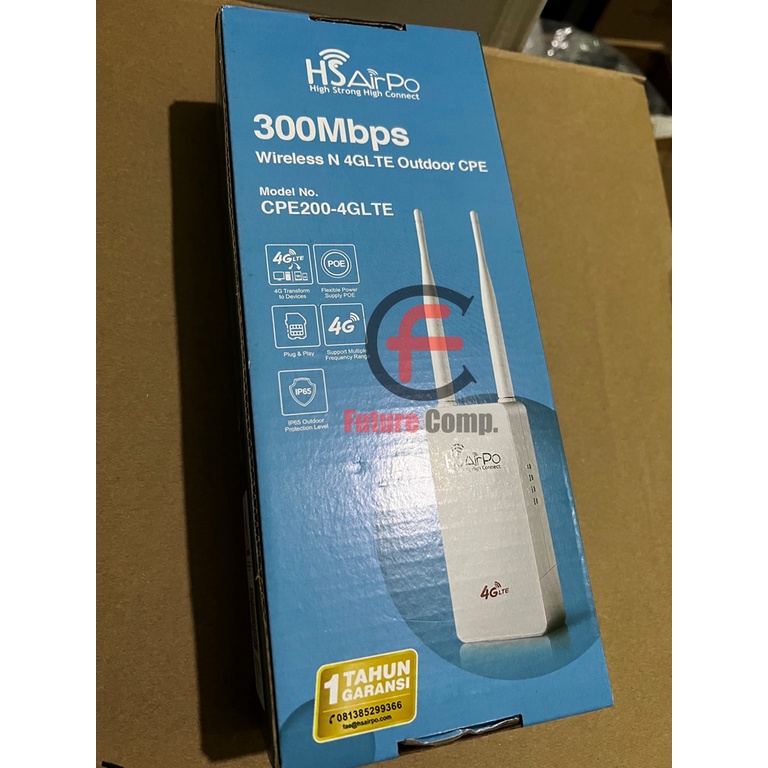

Gambar produk
