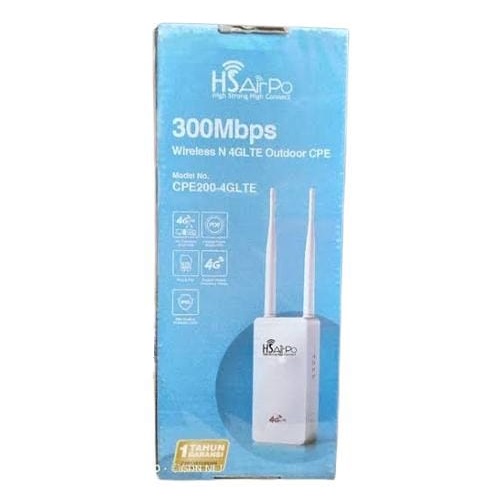

HSAirPo CPE200-4G-LTE Access Point 4G LTE Outdoor Wireless 2.4ghz 300Mbps HS AirPo CPE200 4G LTE M1

Detail HSAirPo CPE200-4G-LTE Access Point 4G LTE Outdoor Wireless 2.4ghz 300Mbps HS AirPo CPE200 4G LTE M1

NOMOR : 82545/SDPPI/2022
*SUPPORT ALL OPERATOR DAN BISA GANTI IMEI SEPERTI MIKROTIK
Motherboard chipset : Mianly chipset: MTK7628
FLASH:8M Sdram:64M
Antenna :
2.4GHz: 2X9dbi Omini direction
4GHz:1X9dBi Omini Direction
4G Specification :
150Mbps downlink and 50Mbps uplink data rate
4G Module:EC200T-CN(Qualcom)
Transmission :
2.4GHz:300Mbps
WIFI RF Frequency : 2412GHz~2472GHz
WIFI Channels 1-13
rate LTE cat4:150Mbps(DL MAX) 50Mbps(UL MAX)
Frequency Range(EC200T) :
LTE FDD:B1/B3/B5/B8
LTE TDD:B34/B38/B39/B40/B41
WCDMA:B1/B5/B8
GSM:B3/B8
Physical Interface :
1*10/100Mbps LAN RJ45Port(Support DC24VPOE power supply)
1*10/100Mbps LAN RJ45 port
1*Reset Button
1*Micro SIM Cassette
Indicator Light :
1*4G, 1*SYS, 1*LAN,1* Power
Power Supply :
24V POE Powe Supply
DC:12V/1A
Protection Level : IP65
Working Environment :
Working temperature:-20~70
Storage temperature:-40~75
Working Humidity:10%~90%RH Non-condensing
Storage Humidity:5%~95%RH Non-condensing
RF Frequency : 2412GHz~2472GHz
Channels : 1.2-13
Transfer Rate :
11a/g:54M,48M,36M,24M,18M,12M,9M,6Mbps
HT20:7.2M,14.4M,21.7M,28.9M,43.3M,57.8M,65M,72.2M,14.4M,28.9M,43.3
M,57.8M,86.7M,115.6M,130M,144.4M
HT40:15M,30M,45M,60M,90M,120M,135M,150M,30M,60M,90M,120M,180M, 240M,270M,300M
RF output Power :
802.11b: 11Mbps 202dbm
802.11g 6Mbps(-25@EVM) 18.02.0dBm
54Mbps(-25@EVM) 17.02.0dBm
HT20(-30@EVM) MCS7 15.02.0dBm
HT40(-30@EVM) MCS7 15.02.0dBm
Reception Sensitivity :
IEEE802.11b 11Mbps -90dBm
IEEE802.11g 6Mbps -88dBm
54Mbps -68dBm
IEEE802.11n HT20 MCS7 -66dBm
HT40 MCS7 -65dBm
Modulation type : OFDM/BPSK/QPSK/DQPSK/DBPSK

Gambar produk
