HSairpo CP580 CPE Wireless Outdoor 5.8 Ghz

Detail HSairpo CP580 CPE Wireless Outdoor 5.8 Ghz

Airpo cp580 adalah CPE Outdoor dengan mengunakan chipset Qualcom Atheros AR 9344 dengan RF Power 300Mw dengan antena 2x 16db internal. Mempunya flash mem 8Gb dan Memory 64 yg membawa b/w up to 300mw

HARDWARE FEATURES

Interface :
2 *10/100Mbps RJ45 Port

Power Supply :
24V DC/1A (PoE)

Button :
1*Reset Button

DC IN:
1*DC in port

Antenna :
2 *16dBi internal dual-polarization antennas

Environment :
Operating Temperature: 0℃~55℃ (32℉~131℉)
Storage Temperature: -20~65℃ (-4℉~149℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

WIRELESS FEATURES :

Standards :
IEEE 802.11n, 802.11a, IEEE 802.3, IEEE 802.3u, IEEE 802.3x

RF Frequency :
5GHz

Data Rate :
802. 11n: up to 300Mbps
802.11a: up to 54Mbps (dynamic)

Wireless Security :
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

Channels :
5020-6085Mhz

Modulation Type :
DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM)

Reception Sensitivity :

135M: -65 dBm@10% PER
54M: -68 dBm@10% PER
11M: -85 dBm@8% PER
6M: -88 dBm@10% PER
1M: -90 dBm@8% PER



SOFTWARE FEATURES :

Status :
A summary of wireless status
Lan
LAN configuration
Wireless
AP
Station
WIFI Advances
Operating frequency
Transmit Power Distance

Diagnostics :
Network Utilities
Netwrok Watchdog
Netwrok Watchdog(NWD)

System :
Administrative Account
Update/Reset
Autoreboot
Reboot

Physical Property Temperature :
Working： -10°C~55°C
Storage： -20°C to 70°C

Humidity
5%~95%( typical)

Waterproof
IP65

Kelengkapan :

- 1unit AIRPO CP 580
- 1unit POE adaptor power
- 1pcs cable patchcord /la
- 2pcs cable ties
- user manual

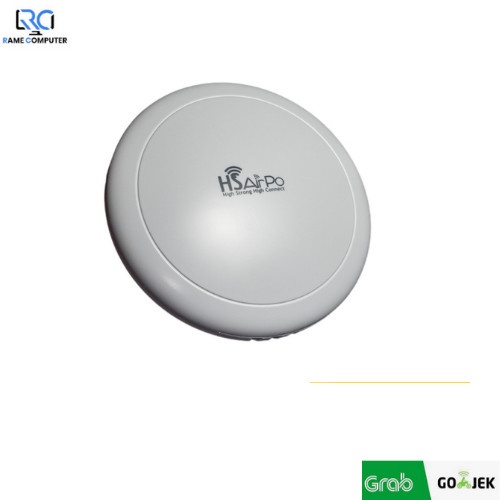

Gambar produk
