HSAirPo CP580 300Mbps CPE Access Point Outdoor 5.8Ghz HS AirPo CP580 N1

Detail HSAirPo CP580 300Mbps CPE Access Point Outdoor 5.8Ghz HS AirPo CP580 N1

Airpo cp580 adalah CPE Outdoor dengan mengunakan chipset Qualcom Atheros AR 9344 dengan RF Power 300Mw dengan antena 2x 16db internal. Mempunya flash mem 8Gb dan Memory 64 yg membawa b/w up to 300mw

HARDWARE FEATURES
Interface
2 *10/100Mbps RJ45 Port
Power Supply
24V DC/1A (PoE)
Button
1*Reset Button
DC IN
1*DC in port
Antenna
2 *16dBi internal dual-polarization antennas
Environment
Operating Temperature: 0℃~55℃ (32℉~131℉)
Storage Temperature: -20~65℃ (-4℉~149℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

WIRELESS FEATURES
Standards
IEEE 802.11n, 802.11a, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
RF Frequency
5GHz
Data Rate
802. 11n: up to 300Mbps
802.11a: up to 54Mbps (dynamic)
Wireless Security
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Channels
5020-6085Mhz
Modulation Type
DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM)
Reception Sensitivity
135M: -65 dBm@10% PER
54M: -68 dBm@10% PER
11M: -85 dBm@8% PER
6M: -88 dBm@10% PER
1M: -90 dBm@8% PER

SOFTWARE FEATURES
Status
A summary of wireless status
Lan
LAN configuration
Wireless
AP
Station
WIFI Advances
Operating frequency
Transmit Power
Distance
Diagnostics
Network Utilities
Netwrok Watchdog
Netwrok Watchdog(NWD)
System
Administrative Account
Update/Reset
Autoreboot
Reboot
Physical Property
Temperature
Working： -10°C~55°C
Storage： -20°C to 70°C
Humidity
5%~95%( typical)
Waterproof
IP65

Kelengkapan :
- 1unit AIRPO CP 580
- 1unit POE adaptor power
- 1pcs cable patchcord /lan
- 2pcs cable ties
- user manual

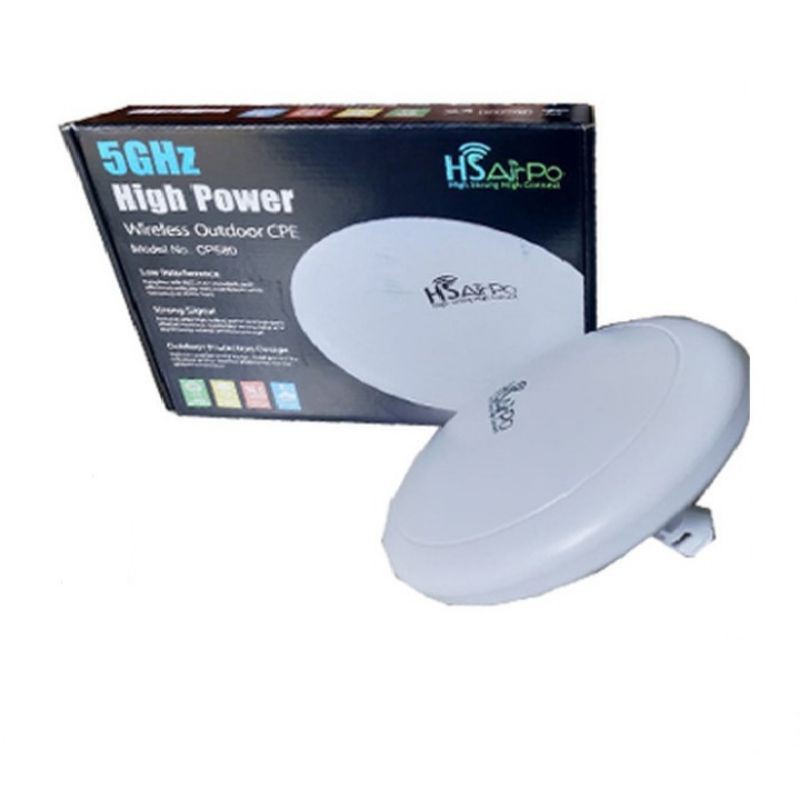

Gambar produk
