HSAIRPO CP100 300Mbps 2.4GHz Wireless N Outdoor

Detail HSAIRPO CP100 300Mbps 2.4GHz Wireless N Outdoor

HS Airpo CP100 2.4Ghz Wireless N mini Outdoor dirancang khusus untuk area terbuka (outdoor), dimana membutuhkan koneksi jaringan nirkabel jarak jauh. Mengusung 2 antena 12dbi menjadikan jangkauan HSairpo CP100 cukup jauh. Sudah dilengkapi dengan PoE (IN) untuk menyalakan perangkat ini melalui kabel LAN.

Fitur:
Chipset : MTK7628
Flash : Default 4MB SPI Nor Flash
SDRAM : Default 32MB SDRAM
Interface : 2 *100BaseTX (Auto MDI/MDIX) LAN Port (Passive PoE Supported)
Power Supply : 24V DC /0.5A (PoE)
Button : 1 *Reset Button
Antenna : 2 *12dBi internal antennas
LED Indicators : 1 *Power, 1 *LAN, 1 *LAN2,,2 *Signal Strength

Environment
- Operating Temperature: 0?~40? (32?~104?)
- Storage Temperature: -40~70? (-104?~158?)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~95% non-condensing

Wireless
Standards : IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3u, IEEE 802.3
RF Frequency : 2.4~2.4835GHz
Data Rate :
- 802.11n: up to 300Mbps
- 802.11g: up to 54Mbps (dynamic)
- 802.11b: up to 11Mbps (dynamic)
Wireless Security :
- 64/128-bit WEP, WPA/WPA2, WPA-Mixed
Channels : 1-11 (North America), 1-13 (General Europe), 1-14 (Japan)
Modulation Type : DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM)
Wireless Outdoor Harga Murah dan Berkualitas dari Brand HS Airpo
HSAIRPO CP100
2.4 Ghz, 300Mbps Wireless Outdoor
Cocok Untuk Point to Point Jarak Pendek dibawa 1Km dengan HARGA TERJANGKAU !!

Hardware
Chipset : MTK7628
Flash : Default 4MB SPI Nor Flash
SDRAM : Default 32MB SDRAM
Interface : 2 *100BaseTX (Auto MDI/MDIX) LAN Port (Passive PoE Supported)
Power Supply : 24V DC /0.5A (PoE)
Button : 1 *Reset Button
Antenna : 2 *12dBi internal antennas
LED Indicators : 1 *Power, 1 *LAN, 1 *LAN2,,2 *Signal Strength
Environment :
- Operating Temperature: 0?~40? (32?~104?)
- Storage Temperature: -40~70? (-104?~158?)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~95% non-condensing

Software
System Status : A summary of wireless status
Operation Mode :
- AP Mode
- Repeater Mode
- Client
- Bridge
- AP+ Client
- Bridge+Client

Network :
- LAN Setting
- Static DHCP Setup

Wireless :
- Basic Setting
- Advanced Setting
- Basic Setting
- Advanced Setting
- Country Region
- Band
- Channel
- DFS
- TX/RX Chain
- Distance
- RF output power

Management :
- Basic Setting
- Upgrade Firmware
- Save/ Reload Setting
- Time Zone Setting
- Password Setting
- System Log
- logout
isi kemasan:
- 1 HS Airpo Cp200
- 1 Power Adapter
- 1 PoE Injector
- 1 buku petunjuk

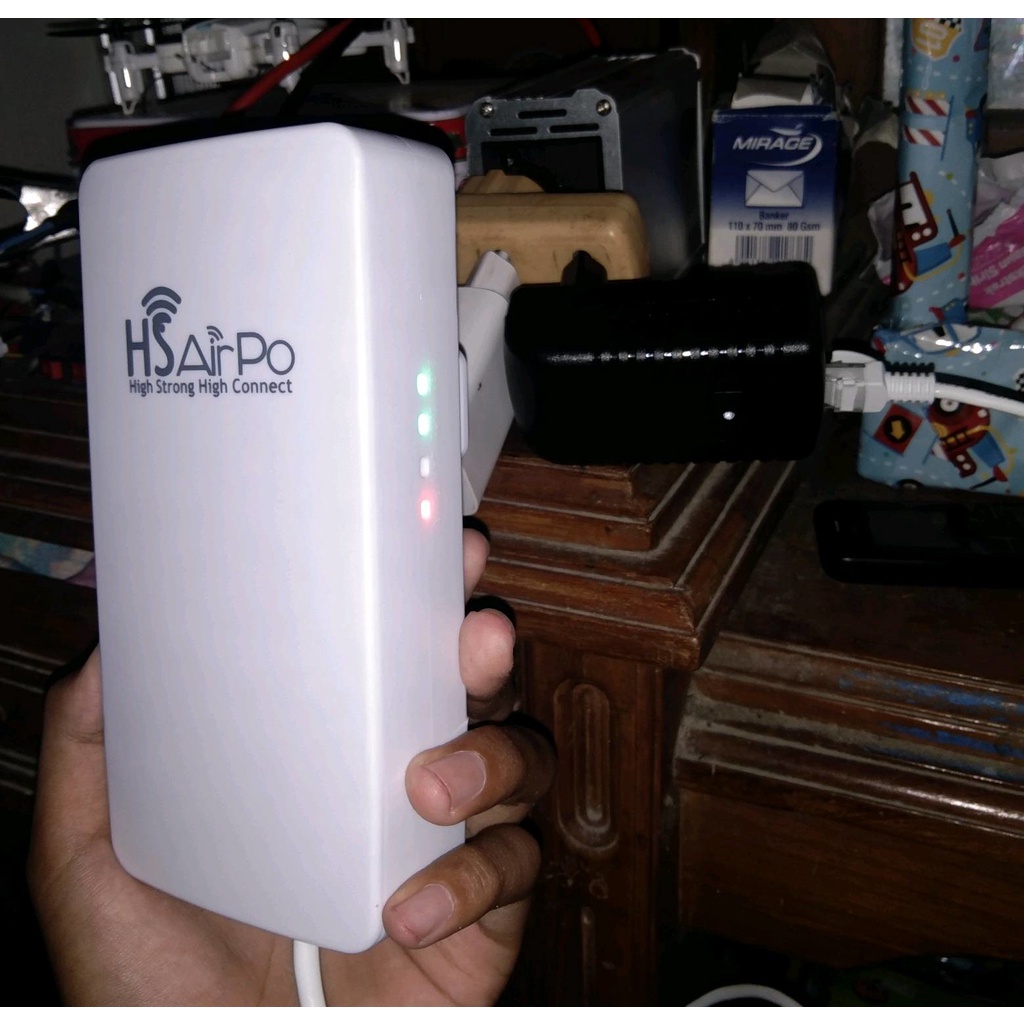

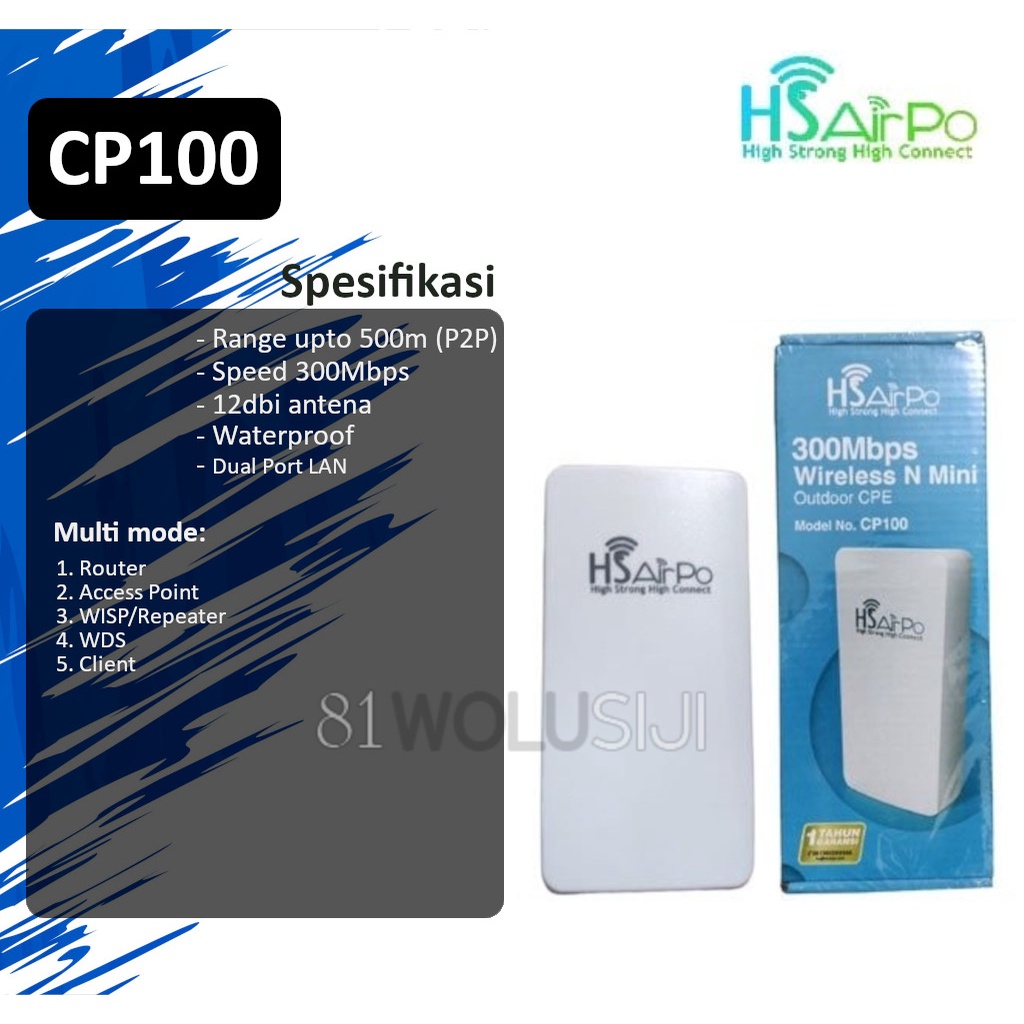

Gambar produk
