HSAirPo CP100 300Mbps 2.4GHz Wireless Mini Outdoor HS AirPo CP100 N1

Merek: HSAIRPO | Lihat selengkapnya produk Komputer & Aksesoris dari HSAIRPO
Komputer & Aksesoris > Komponen Network > Modem & Router Wireless > HSAirPo CP100 300Mbps 2.4GHz Wireless Mini Outdoor HS AirPo CP100 N1
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail HSAirPo CP100 300Mbps 2.4GHz Wireless Mini Outdoor HS AirPo CP100 N1

Hardware
Chipset : MTK7628
Flash : Default 4MB SPI Nor Flash
SDRAM : Default 32MB SDRAM
Interface : 2 *100BaseTX (Auto MDI/MDIX) LAN Port (Passive PoE Supported)
Power Supply : 24V DC /0.5A (PoE)
Button : 1 *Reset Button
Antenna : 2 *12dBi internal antennas
LED Indicators : 1 *Power, 1 *LAN, 1 *LAN2,,2 *Signal Strength
Environment :
- Operating Temperature: 0?~40? (32?~104?)
- Storage Temperature: -40~70? (-104?~158?)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~95% non-condensing

Wireless
Standards : IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3u, IEEE 802.3
RF Frequency : 2.4~2.4835GHz
Data Rate :
- 802.11n: up to 300Mbps
- 802.11g: up to 54Mbps (dynamic)
- 802.11b: up to 11Mbps (dynamic)
Wireless Security :
- 64/128-bit WEP, WPA/WPA2, WPA-Mixed
Channels : 1-11 (North America), 1-13 (General Europe), 1-14 (Japan)
Modulation Type : DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM)
Reception Sensitivity :
- 11M: -81 dBm@10% PER
- 54M: -68 dBm@10% PER
HT20 MCS7: -65 dBm@10% PER
HT40 MCS7: -62 dBm@10% PER

Software
System Status : A summary of wireless status
Operation Mode :
- AP Mode
- Repeater Mode
- Client
- Bridge
- AP+ Client
- Bridge+Client

Network :
- LAN Setting
- Static DHCP Setup

Wireless :
- Basic Setting
- Advanced Setting
- Basic Setting
- Advanced Setting
- Country Region
- Band
- Channel
- DFS
- TX/RX Chain
- Distance
- RF output power

Management :
- Basic Setting
- Upgrade Firmware
- Save/ Reload Setting
- Time Zone Setting
- Password Setting
- System Log
- logout

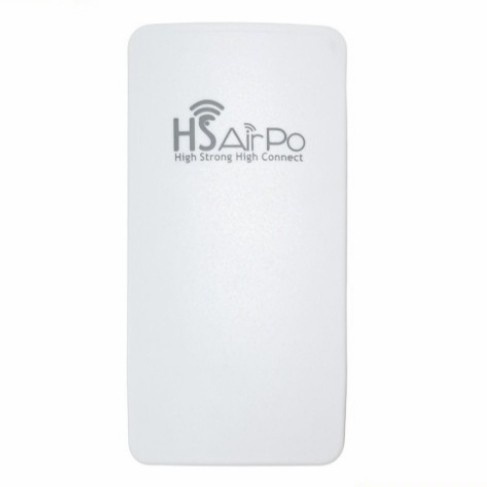

Gambar produk

HSAirPo CP100 300Mbps 2.4GHz Wireless Mini Outdoor HS AirPo CP100 N1
HSAirPo CP100 300Mbps 2.4GHz Wireless Mini Outdoor HS AirPo CP100 N1
