HSAIRPO CP100 300Mbps 2.4GHz Wireless N Mini Outdoor

Detail HSAIRPO CP100 300Mbps 2.4GHz Wireless N Mini Outdoor

Wireless Outdoor Harga Murah dan Berkualitas dari Brand HS Airpo
HSAIRPO CP100
2.4 Ghz, 300Mbps Wireless Outdoor
Cocok Untuk Point to Point Jarak Pendek dibawa 1Km dengan HARGA TERJANGKAU !!

Hardware
Chipset : MTK7628
Flash : Default 4MB SPI Nor Flash
SDRAM : Default 32MB SDRAM
Interface : 2 *100BaseTX (Auto MDI/MDIX) LAN Port (Passive PoE Supported)
Power Supply : 24V DC /0.5A (PoE)
Button : 1 *Reset Button
Antenna : 2 *12dBi internal antennas
LED Indicators : 1 *Power, 1 *LAN, 1 *LAN2,,2 *Signal Strength
Environment :
- Operating Temperature: 0?~40? (32?~104?)
- Storage Temperature: -40~70? (-104?~158?)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~95% non-condensing

Wireless
Standards : IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3u, IEEE 802.3
RF Frequency : 2.4~2.4835GHz
Data Rate :
- 802.11n: up to 300Mbps
- 802.11g: up to 54Mbps (dynamic)
- 802.11b: up to 11Mbps (dynamic)
Wireless Security :
- 64/128-bit WEP, WPA/WPA2, WPA-Mixed
Channels : 1-11 (North America), 1-13 (General Europe), 1-14 (Japan)
Modulation Type : DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM)
Reception Sensitivity :
- 11M: -81 dBm@10% PER
- 54M: -68 dBm@10% PER
HT20 MCS7: -65 dBm@10% PER
HT40 MCS7: -62 dBm@10% PER

Software
System Status : A summary of wireless status
Operation Mode :
- AP Mode
- Repeater Mode
- Client
- Bridge
- AP+ Client
- Bridge+Client

Network :
- LAN Setting
- Static DHCP Setup

Wireless :
- Basic Setting
- Advanced Setting
- Basic Setting
- Advanced Setting
- Country Region
- Band
- Channel
- DFS
- TX/RX Chain
- Distance
- RF output power

Management :
- Basic Setting
- Upgrade Firmware
- Save/ Reload Setting
- Time Zone Setting
- Password Setting
- System Log
- logout

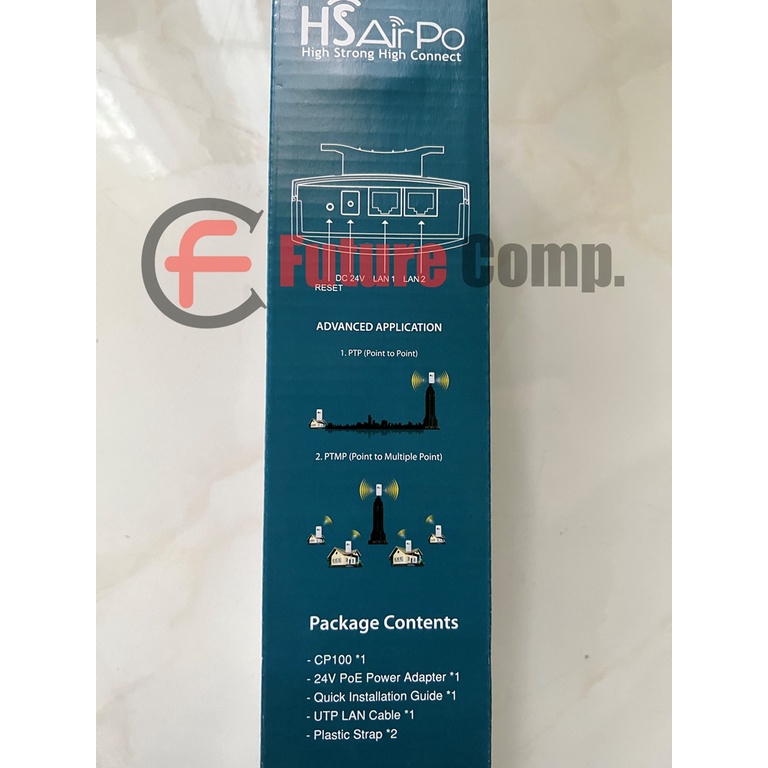

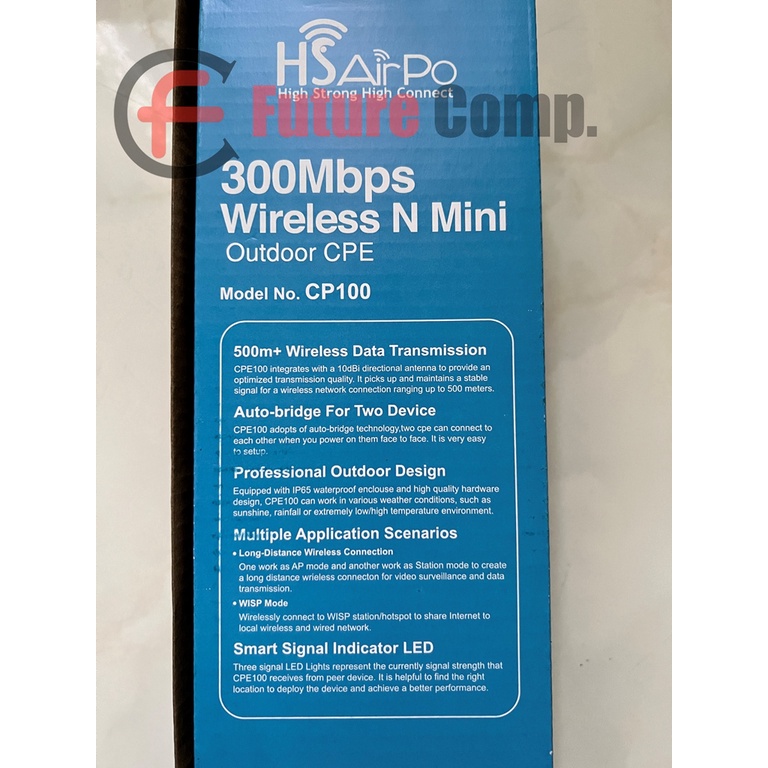

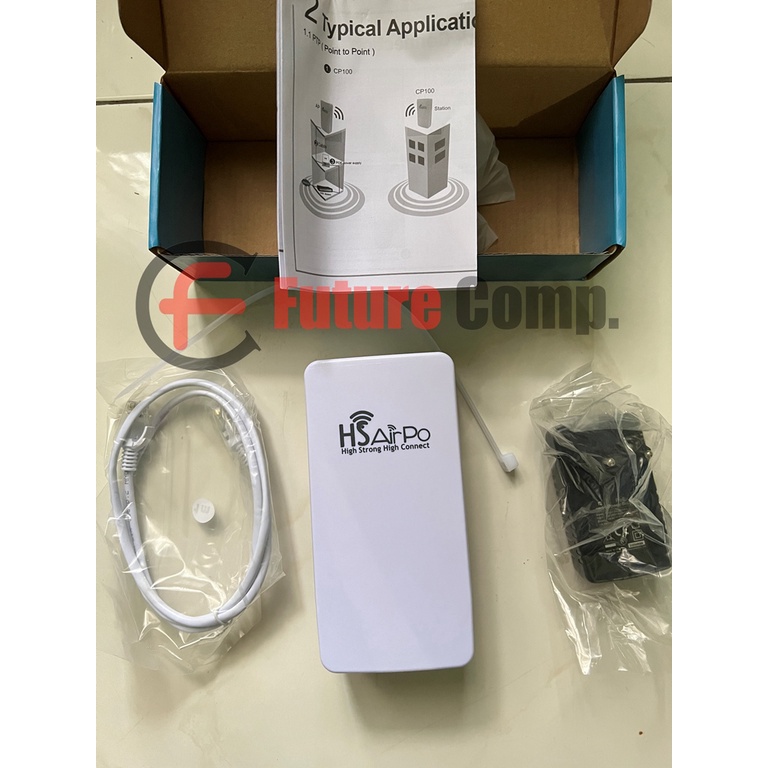

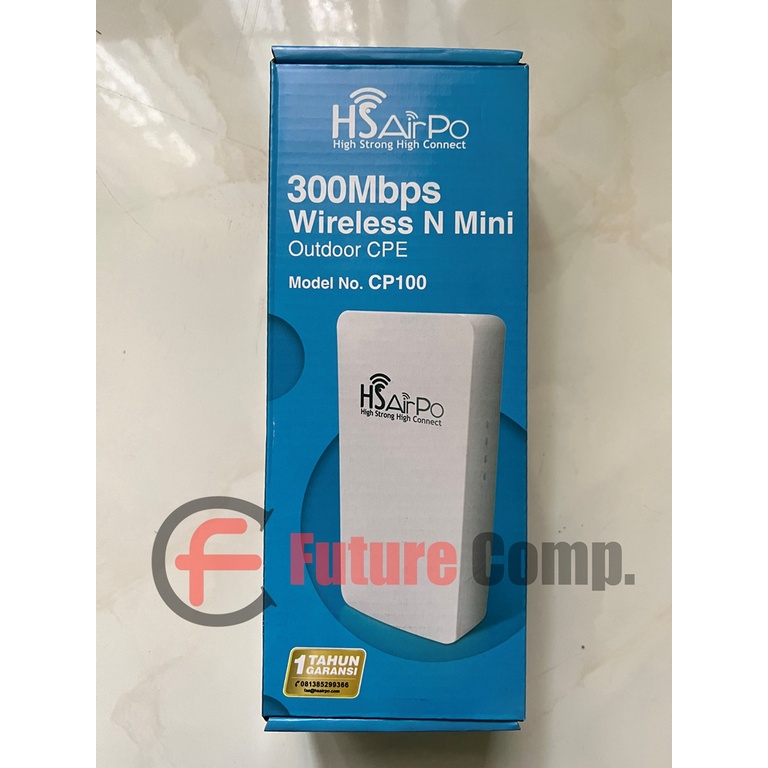

Gambar produk
