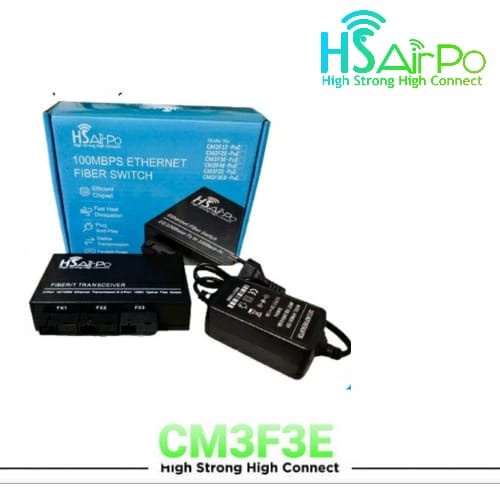

Detail HSAirpo CM3F3E 3 Fo 3 Lan Media Converter 3Fo 3Lan HS Airpo CM3F3E N1
CM3F3E ( 3 FIBER 3 ETHERNET )
3 FIBER AAB
3 ETHERNET
STANDARDS :
- IEEE802.3i 10Base-T
- IEEE802.3u 100Base-TX/FX
- IEEE802.3x Flow Control
- IEEE802.1p QoS
- IEEE802.1d SpanningTree
ETHERNET PORT :
- Connector RJ45
- Data Rate 10/100M Distance 100M
- UTP Type UTP 5E or Higher Level
FIBER PORT :
- Connector SC
- Data Rate 155Mbps
- Optical Wavelength
- 850nm/1310nm/1490nm/1550nm
- Distance 20Km
PERFORMANCE :
- Processing Type : Storeand Forward
- MAC Table Size : 8K
- Buffer Space : 1Mbit
- Jumbo Packet : 1518bytes
- Backbandwitch : 5.6G
- Time Delay <150
POWER :
- Power type : External power suply
- Input Voltage : AC 100V~240V 50/60Hz
- Connector DC Socket
- Power Supply : DC in 5v/2a
- 5-12V passive PoE
- Power Consumption 1.5W~2.5W
TRANSMISSION DISTANCE :
- Twisted Pair : 100m (Cat 5E or above cables)
- Single Mode : 20KM
Gambar produk
