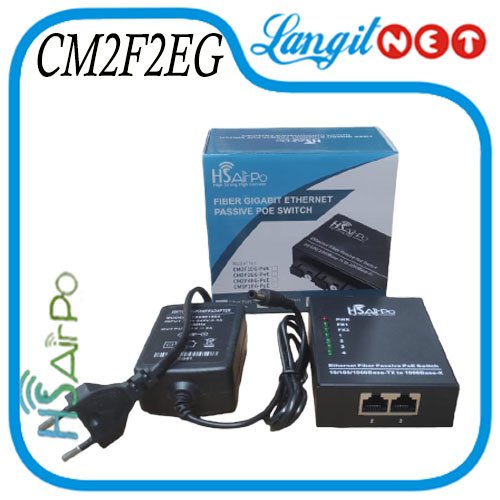

HSAIRPO CM2F2EG POE GIGABIT MEDIA CONVERTER 2 FIBER 2 ETHERNET 3KM SC

Detail HSAIRPO CM2F2EG POE GIGABIT MEDIA CONVERTER 2 FIBER 2 ETHERNET 3KM SC

Video Produk :
youtube.com/watch?v=qeQjqxlItPE

Spesifications :
Standards :
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3x Flow control
IEEE802.1p QoS
IEEE802.1d Spanning Tree

Ethernet Port :
Connector: RJ45
Qty : 2 Port Ethernet
Data Rate: 10/100/1000M Distance: 100m
UTP Type: UTP-5E or higher level

Power :
Power type: external power supply
Input Voltage: AC100V~ 240V 50/60Hz
Connector: DC 5V/2A
Power Consumption: 1.5W~ 2.5W
Power Supply: Support 5~12V Passive
POE by Lan1 Port

Fiber Port :
Connector: SC
Data Rate: 1.25Gbs
Optical Wavelength: 850nm/1310nm/1490nm/1550nm
Distance: 3km or 20km

Transmission Distance :
Twisted Pair: 100m (CAT5e, CAT6 cables)
Single-mode: 3km or 20km

Performance :
Processing Type: Store and Forward
MAC Table Size: 8K
Buffer Space: 1Mbit
Jumbo Packet: 1518 bytes
Back bandwidth: 5.6G
Time Delay: <150us

MTBF :
100, 000 hours

Environment :
Storage Temperature: -40~ 70C
Operating Temperature: -10~ 55C
Relative Humidity: 5-90% ( no condensation)

Gambar produk
