Detail HSAIRPO CM1200 SFP GIGABITE MEDIA CONVERTER
INCLUDE SFP BIDI 3KM Pair LC
Standards :
- IEEE802.3 10Base-T
- IEEE802.3u 100Base-TX/FX
- IEEE802.3ab 1000Base-T
- IEEE802.3z 1000Base-SX/LX
- IEEE802.3x Flow control
- IEEE802.1p QoS
- IEEE802.1d Spanning Tree
- IEEE802.1q VLAN
Certifications :
- CCC, CE, FCC, RoHS
Ethernet Port :
- Connector: RJ45
- Data Rate: 10/100/1000M
- Distance: 100m
- UTP Type: UTP-5E or higher level
Fiber Port :
- Connector: SFP slot
- Data Rate: 1.25Gbps
- Distance: 550m~100km
Performance :
- Processing Type: Store and Forward
- MAC Table Size: 2K
- Buffer Space: 1Mbit
- Maximum packet length: 9K
- Back bandwidth: 4G
-Time Delay: <20s
Power :
-Power type: external power supply
-Input Voltage: AC100V~240V 50/60Hz
-Connector: DC Socket
-Working Voltage: 5V
-Power Consumption: 0.75W~3W
Environment :
- Storage Temperature: -40~70?
- Operating Temperature: -10~55?
- Relative Humidity: 5-95% ( no condensation)

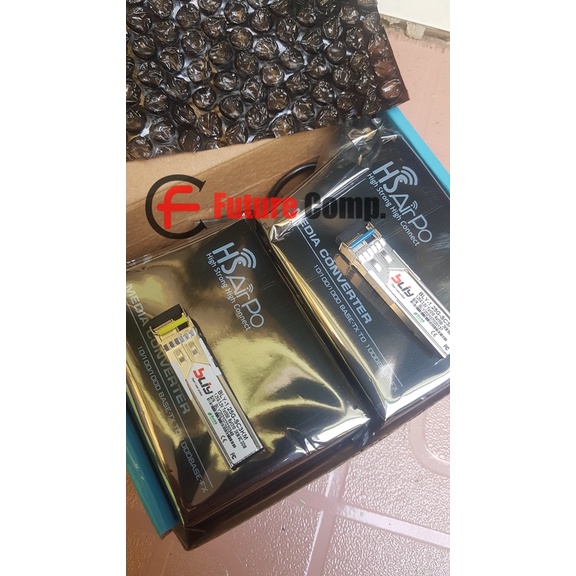

Gambar produk
