Detail HSAIRPO DROPCORE 1CORE 1KM
Spesifikasi :
- Brand : HSAIRPO
Warna : Black
- Kategori : Dropcore
- Model Kabel : HS-GJYFXCH-1C6A
- Tipe : 1 Core 3 Seling (2 Plastik 1 Kawat)
- panjang : 1000M / 1KM
- High Quality Product : YES
Fiber Parameters :
- Mode Field Diameter :
1310nm = 8-10
1550nm = 10.10.5
- Cladding Diameter : 124.80.7
- Cladding Non-Circularity 0.7
- Core-Cladding Concentricity Error 0.5
- Coating Diameter 2455
- Coating Non-Circularity 6.0
- Cladding-Coating Concentricity Error 12.0
- Cable Cutoff Wavelength cc1260
- Attenuation(max.) :
1310nm dB/km 0.42
1550nm dB/km 0.26
- Macro-Bending Loss
1turn10mm radius @1550nm dB 0.75
1turn10mm radius @1625nm dB 1.5
Cable Parameters :
- Fiber Count : 1
- Colored Coating Fiber : BLue
- Strength Member : FRP
- Self-Supporting Member : Galvanized Steel
- Jacket : LZSH Black

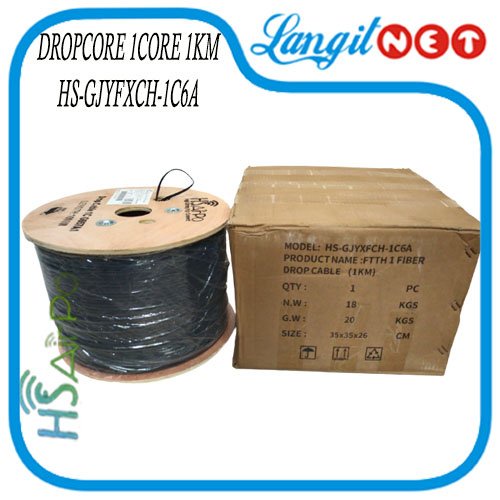

Gambar produk
