HS Airpo EPON OLT HS-EPT1004 with PX20+++ 7db

Merek: HSAIRPO | Lihat selengkapnya produk Komputer & Aksesoris dari HSAIRPO
Komputer & Aksesoris > Komponen Network > Repeater > HS Airpo EPON OLT HS-EPT1004 with PX20+++ 7db
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail HS Airpo EPON OLT HS-EPT1004 with PX20+++ 7db

SERTIFIKAT POSTEL
NOMOR : 79018/SDPPI/2021

VIDEO PRODUK :
https://www.youtube.com/watch?v=3oD6eC5uscA

MODEL : EPT1004
MAIN CHIPSET : cs8022
FLASH SIZE : 32M
SADRM SIZE : 256M

SUDAH INCLUDE 4SFP PX20+++ & KUPINGAN RACKMOUNT
HSAirpo EPON OLT HS-EPT1004 L3,4PON,4SFP+4RJ45,
1U 19 inch standard box EPON OLT with 4 PON ports
Compliant with IEEE802.3ah YD/T1475-2006—EPON and China Telecom EPON Technical Requirements
QoS based on port, VID, TOS and MAC address(32K Mac address)
Support priority queue scheduling, support SP, WRR or SP + WRR scheduling algorithm
Support 4096 VLAN, transparent transmission and conversion, support VLAN stacking (QinQ)
Support 32K MAC’s line speed learning and aging, support MAC address restriction
Support IEEE 802.1d (STP), 802.1w (RSTP) and MSTP Spanning Tree Protocol
Support multicast Groups, IGMP v1/v2 snooping and IGMP Proxy
Support port-based rate limitation and bandwidth control
Support PON line AES and triple churing encryption
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto-MAC binding and filtering, support the ONU offline business configuration and automatically configure, manual/auto authentication
Support the use of the ACL rules for packet filtering
Support SNMP, telnet, CLI, OAM and Web management
Provide logs, alarms and performance statistics
Support remote software upgrade
PON standard.        EPON IEEE802.3ah
PON interface        4*EPON SFP Ports (PX20+++),  Receiving sensitivity: ≤-30dBm(Saturation Optical -6dBm). Power,
Transmitting optical power: +2~+7dBm
Transmission distance: 20KM. Max splitting ratio1:64
    Speed    Upstream 1.25G
Downstream 1.25G
Wavelength    nm    Tx1310, Rx 1490
Uplink    GE    4*copper ethernet ports 10/100/1000M auto-negotiation
    SFP    4*GE SFP
Management Ports        1*10/100BASE-T out-band port, 1*CONSOLE port
Backplane    Gbps    128
MAC table    K    32
Spanning
Tree protocol        Support IEEE 802.1d (STP), 802.1w (RSTP) spanning tree protocols
QoS        Support 802.1p priority queue scheduling
Support SPWRR and SP+WRR scheduling algorithms
Operating condition    ?    Operating temp: -5 ~ +55
Storing condition    ?    Storing temp: -40 ~ +85
Humidity    %    5~90(non-condensing)
Power consumption    W    ≤3

Gambar produk

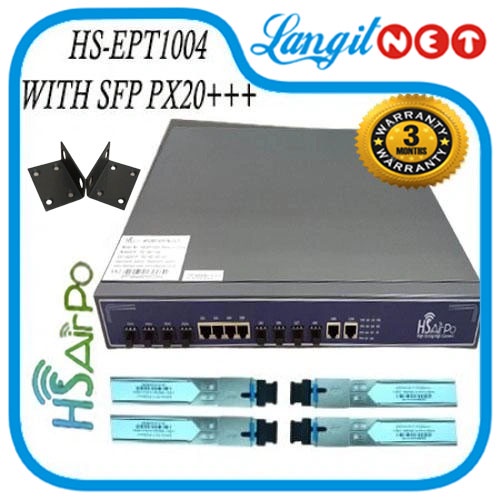

HS Airpo EPON OLT HS-EPT1004 with PX20+++ 7db
HS Airpo EPON OLT HS-EPT1004 with PX20+++ 7db
