HS AIRPO CP580 300MBPS ATHEROS AR9433 OUTDOOR 5.8Ghz

Detail HS AIRPO CP580 300MBPS ATHEROS AR9433 OUTDOOR 5.8Ghz

VIDEO PRODUK :
https://www.youtube.com/watch?v=nu-Uk1rO9_E

**POSTEL NOMOR : 72153/SDPPI/2020**

HARDWARE FEATURES
Airpo cp580 adalah CPE Outdoor dengan mengunakan chipset Qualcom Atheros AR 9344 dengan RF Power 300Mw dengan antena 2x 16db internal. Mempunya flash mem 8Gb dan Memory 64 yg membawa b/w up to 300mw

Interface

2 *10/100Mbps RJ45 Port

Power Supply

24V DC/1A (PoE)

Button

1*Reset Button

DC IN

1*DC in port

Antenna

2 *16dBi internal dual-polarization antennas

Environment

Operating Temperature: 0℃~55℃ (32℉~131℉)

Storage Temperature: -20~65℃ (-4℉~149℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~95% non-condensing

WIRELESS FEATURES

Standards

IEEE 802.11n, 802.11a, IEEE 802.3, IEEE 802.3u, IEEE 802.3x

RF Frequency

5GHz

Data Rate

802. 11n: up to 300Mbps

802.11a: up to 54Mbps (dynamic)

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

Channels

5020-6085Mhz

Modulation Type

DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM)

Reception Sensitivity

135M: -65 dBm@10% PER

54M: -68 dBm@10% PER

11M: -85 dBm@8% PER

6M: -88 dBm@10% PER

1M: -90 dBm@8% PER

SOFTWARE FEATURES

Status

A summary of wireless status

Lan

LAN configuration

Wireless

AP

Station

WIFI Advances

Operating frequency

Transmit Power

Distance

Diagnostics

Network Utilities

Netwrok Watchdog

Netwrok Watchdog(NWD)

System

Administrative Account

Update/Reset

Autoreboot

Reboot

Physical Property

Temperature

Working： -10°C~55°C

Storage： -20°C to 70°C

Humidity

5%~95%( typical)

Waterproof

IP65

Kelengkapan :

- 1unit AIRPO CP 580

- 1unit POE adaptor power

- 1pcs cable patchcord /lan

- 2pcs cable ties

- user manual

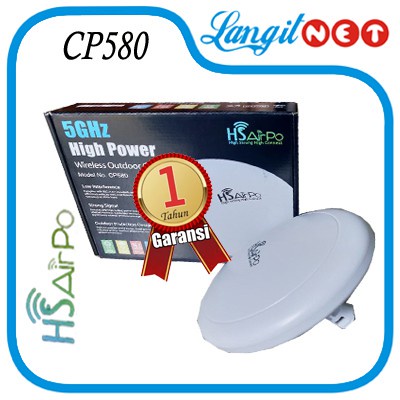

Gambar produk
