HS AIRPO CP500 5GHZ HIGH POWER OUTDOOR

Detail HS AIRPO CP500 5GHZ HIGH POWER OUTDOOR

NOMOR : 82440/SDPPI/2022

CP500 adalah Solusi WISP CPE 5GHz yang dirancang khusus untuk transmisi nirkabel jarak jauh. Ini sesuai dengan standar IEEE802.11n yang paling canggih, yang dapat memberikan kecepatan nirkabel hingga 300Mbps dan daya output 400mw. Dengan dua antena internal gain tinggi dan arsitektur radio canggih, CP500 akan membuat jangkauan transmisi sinyal radio lebih luas dengan koneksi nirkabel yang stabil. Selain itu, ia juga menawarkan mode jaringan Acces Point, Station dan Repeater yang memungkinkan lebih banyak pengguna untuk mengakses internet. Didukung oleh Pasif PoE membuat penyebaran lebih fleksibel

-Chipset Atheros ar9344
- Flash : 8M
- Memory 64M
-Complies with IEEE802.11n /a standards on 5G band.

- Supports AP/Station/Repeater networking modes.
- RF power up to 26dbm : 400mw.
- Internal dual-polarization 14dBi antennas.
- Water-proof housing (IP65) and Lightning protection design.
- Muti-frequency channels selectable
- Supports Ping Watchdog/SSH Sever/Web Server/NTP Client
- 4LED signal Strength Indications
- Provides 64/128 bit WEP encryption and WPA-PSK, WPA2-PSK security.
- Passive PoE power supply.

CPU Atheros AR9344 rev 3
Memory 64MB DDR2
Flash Winbond W25Q64 @ 22MHz (8MB)
Ethernet Atheros AR8228/AR8229 rev 1
Clock frequency CPU: 560MHz, DDR: 450MHz, AHB: 225MHz, Ref: 40MHz
Date of compilation 2017-04-16 [git-47a2563]
Version 1.1 (r1010)

HARDWARE FEATURES

Interface

2 *10/100Mbps RJ45 Port

Power Supply

24V DC/1A (PoE)

Button

1*Reset Button

DC IN

1*DC in port

Antenna

2 *14dBi internal dual-polarization antennas

Environment

Operating Temperature: 0℃~55℃ (32℉~131℉)

Storage Temperature: -20~65℃ (-4℉~149℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~95% non-condensing

WIRELESS FEATURES

Standards

IEEE 802.11n, 802.11a, IEEE 802.3, IEEE 802.3u, IEEE 802.3x

RF Frequency

5GHz

Data Rate

802. 11n: up to 300Mbps

802.11a: up to 54Mbps (dynamic)

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

Channels

5020-6085Mhz

Modulation Type

DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM)

Reception Sensitivity

135M: -65 dBm@10% PER

54M: -68 dBm@10% PER

11M: -85 dBm@8% PER

6M: -88 dBm@10% PER

1M: -90 dBm@8% PER

SOFTWARE FEATURES

Status

A summary of wireless status

Lan

LAN configuration

Wireless

AP

Station

WIFI Advances

Operating frequency

Transmit Power

Distance

Diagnostics

Network Utilities

Netwrok Watchdog

Netwrok Watchdog(NWD)

System

Administrative Account

Update/Reset

Autoreboot

Reboot

Physical Property

Temperature

Working： -10°C~55°C

Storage： -20°C to 70°C

Humidity

5%~95%( typical)

Waterproof

IP65


Kelengkapan :

- 1unit AIRPO CP 500

- 1unit POE adaptor power

- 1pcs cable patchcord /lan

- 2pcs cable ties

- user manual

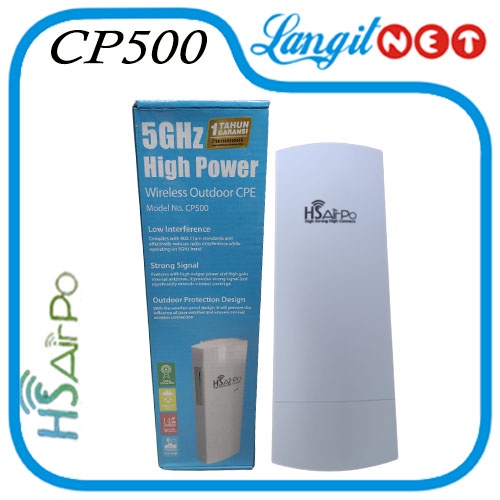

Gambar produk
