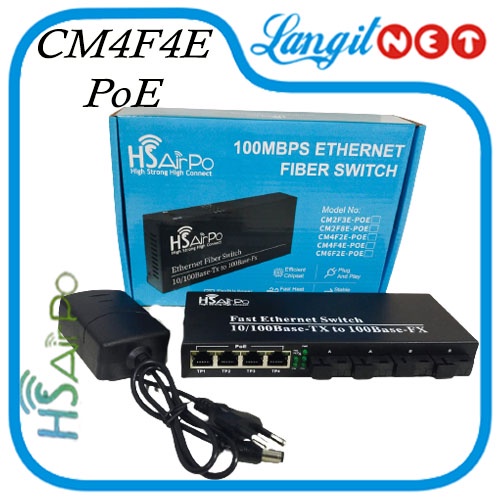

HS AIRPO CM4F4E A2B2 MEDIA CONVERTER 4FIBER 4ETH10/100

Merek: HSAIRPO | Lihat selengkapnya produk Komputer & Aksesoris dari HSAIRPO
Komputer & Aksesoris > Komponen Network > Wireless Adapter & Kartu Network > HS AIRPO CM4F4E A2B2 MEDIA CONVERTER 4FIBER 4ETH10/100
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:Langitnet NetworkLihat semua produk Komputer & Aksesoris oleh Langitnet Network
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail HS AIRPO CM4F4E A2B2 MEDIA CONVERTER 4FIBER 4ETH10/100

CM4F4E ( 4 FIBER 4 ETHERNET )
Compatible with :
Netlink
Zimmlink
other OEM

2x Fiber port A
2x Fiber Port B
4x Ethernet port

Specification

Standards :
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3x Flow control
IEEE802.1d Spanning Tree
IEEE802.1p QoS

Ethernet Port :
Connector: Rj45
Data Rate: 10/100M Distance: 100m
UTP Type: UTP-SE or higher level

Fiber Port :
Connector: SC
Data Rate: 155Mbps Optical Wavelength:
850nm/1310nm/1490nm/1550nm
Distance: 20km

Performance :
Processing Type: Store and Forward
MAC Table Size: 8K
Jumbo Packet: 1518 bytes
Buffer Space: 1Mbit
Back bandwidth: 0.6/1/1.2/1.2/1.6/1/6G
Time Delay: <150μm

Power :
Power type: external power supply
Input Voltage: AC100V-240V 50/60Hz
Connector: DC Socket, support passive
INPUT : 5V
Power Consumption: 1.5W-2.5W

Transmission Distance
Twisted Pair: 100m (CAT5e, CAT6 cables)
Single-mode: 20km

MTBF :
100,000 hours
