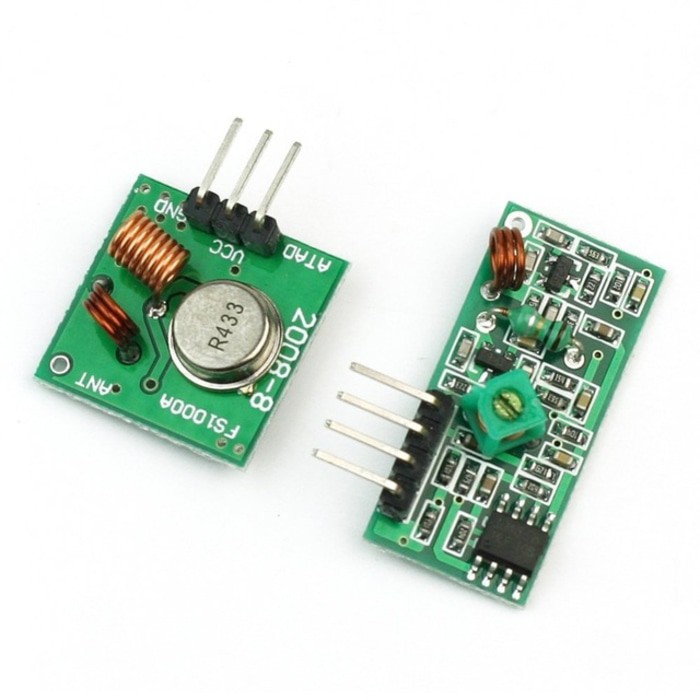

HQ wireless reciever & transmitter module 433 / 315MHZ 5v

Detail HQ wireless reciever & transmitter module 433 / 315MHZ 5v

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirstock = 50 pcs
MOHON DISERTAKAN KETERANGAN APAKAH MINTA DIKIRIM 433 ATAU 315, APABILA TIDAK ADA
KETERANGAN AKAN DIKIRIM RANDOM

Model MX-05V

Operating voltage : DC5V Quiescent Current: 4MA

Receiving frequency: 433.92MHZ /315 Mhz

Receiving sensitivity: - 105dB

Size : 30 * 14 * 7mm external antenna: 32CM single core wire, wound into a
spiral

Technical parameters emission head

Model: MX-FS-03V

Transmission Distance: 20 -200 meters (different voltage, different effects)
Operating voltage: 3.5-12V Dimensions: 19 * 19mm
Ways of working: AM transfer rate: 4KB / S transmit power: 10mW
Transmission frequency: 433M
External antenna: 25cm ordinary multi-core or single wire
Pinout left right :( the DATA ; the VCC ; the GND )
Application Environment

Remote control switch, receiving module, motorcycle, automobile anti-theft
products, home security products, electric doors, shutter doors, windows, remote
control socket, remote control LED, remote audio, remote control electric doors,
garage door remote control, remote control retractable doors, remote control
gate volume, pan doors, remote control door opener, and other closed door
control system, remote control curtains, alarm host, alarm, remote controlled
motorcycles, electric remote control cars, remote control MP3 and so on.
Optional accessories
With the company supporting the use of remote control products.
Remark
VCC voltage to be consistent with the module voltage, and to do the power
filter;
antenna reception module great influence, then the best 1/4 wavelength antenna,
generally use 50 ohm single-core wire, length of the antenna 433M ca. is 17cm ;
antenna position also on reception module, install the antenna stretched as far
as possible, away from the shield, high pressure, and local sources of
interference ; reception frequency use, decoding and oscillation resistance sho
