HQ Ultra-Small Step Down Power Supply Module 3A Adjustable replace LM2596

Komputer & Aksesoris > Komponen Desktop & Laptop > Power Supply > HQ Ultra-Small Step Down Power Supply Module 3A Adjustable replace LM2596
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:arduino loverLihat semua produk Komputer & Aksesoris oleh arduino lover
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail HQ Ultra-Small Step Down Power Supply Module 3A Adjustable replace LM2596

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirSTOCK per 21 jan = 200 pcs

Application
DIY mobile power, monitor power supply, power buggies, camera power supply, car
power, communications equipment supply, various right size and weight for
demanding applications (such as aviation models, etc).

1. Model Name: Ultra-small DC-DC step-down module
2. Input voltage: 4.5-28V
3. Output Voltage: 0.8-20V
4. Output current: rated current 3A(MAX).
5. Switching Frequency: 1.5MHz (highest), typical 1MHz
6. Output Ripple: < 30mV
7. Efficiency: 96% (max)
8. Operating temperature: -40 Celsius to +85 Celsius

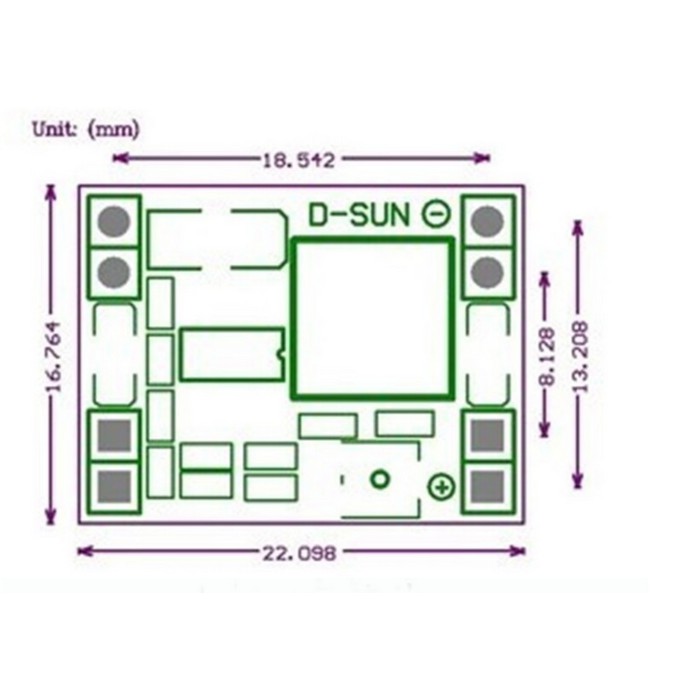

9. Size: 22mm*17mm*4mm

Gambar produk

HQ Ultra-Small Step Down Power Supply Module 3A Adjustable replace LM2596
HQ Ultra-Small Step Down Power Supply Module 3A Adjustable replace LM2596
HQ Ultra-Small Step Down Power Supply Module 3A Adjustable replace LM2596
HQ Ultra-Small Step Down Power Supply Module 3A Adjustable replace LM2596
HQ Ultra-Small Step Down Power Supply Module 3A Adjustable replace LM2596
HQ Ultra-Small Step Down Power Supply Module 3A Adjustable replace LM2596
HQ Ultra-Small Step Down Power Supply Module 3A Adjustable replace LM2596
HQ Ultra-Small Step Down Power Supply Module 3A Adjustable replace LM2596
Lihat lebih banyak informasi produk
