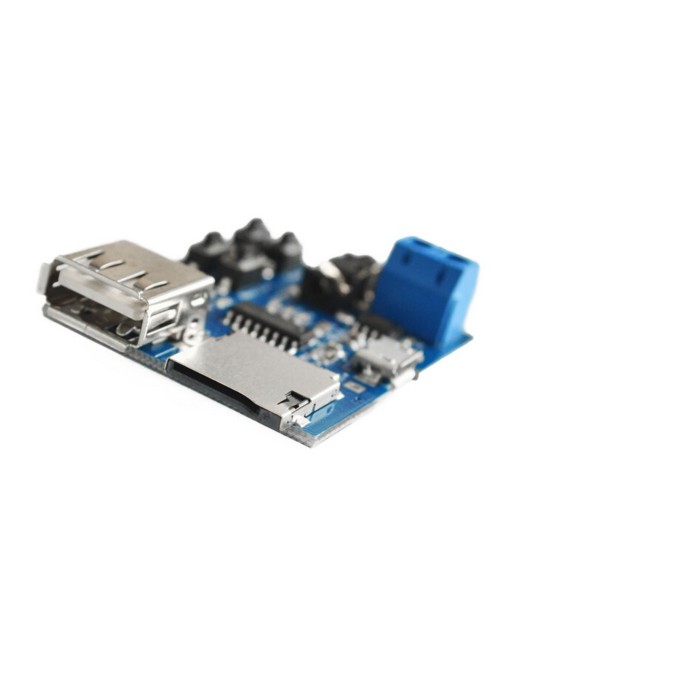

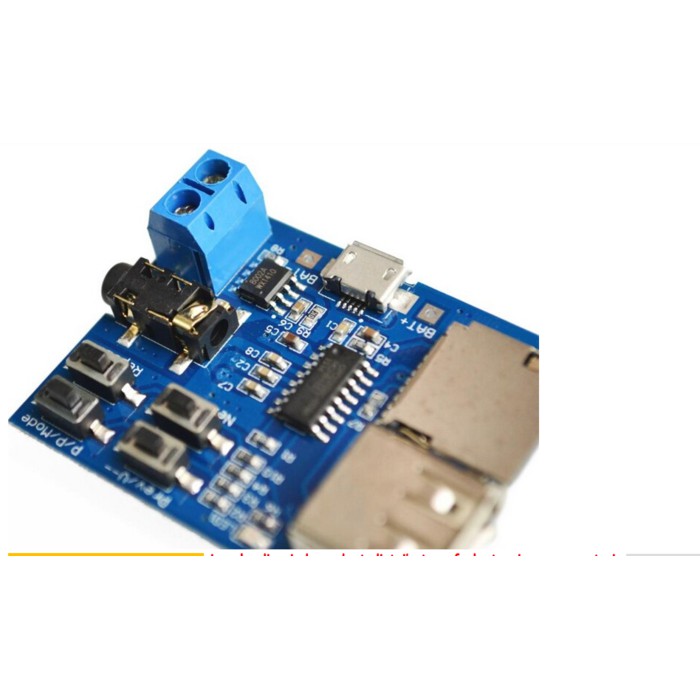

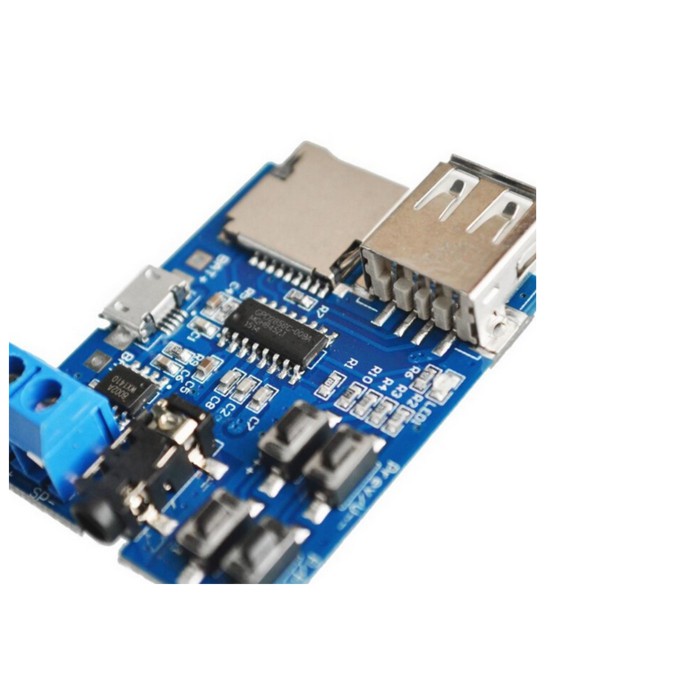

HQ TF card U disk MP3 decoder board module amplifier audio Player

Detail HQ TF card U disk MP3 decoder board module amplifier audio Player

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirstock per 5 des = 10 pccs

Superior sound quality.Onboard 2Wmonoamplifier(5V power of up to 3W) is
directlyconnected to the speaker(recommendation 43Wspeakers),3.5mm gold plated
headphone jackcan connect with headphones or external audio.
l With aMicroUSB port.Through the mobile phone data line can use mobile power
supply or the USB cable to charge the MP3 battery,also can use 3.7V
lithiumbattery,orUSB 5V power supply.
l SupportTF Card(mobile phone memory card) andU diskplay mode.
l No soldering with speaker terminals for easy wiring.
l The module is designed to facilitate modification.

Product Overview:
1) Support MP3 format, playing power on automatically.When mp3 is played the red
LED flashes.
2) Support U disk (test 32G), TF Card (test 16G) play mode; power on default TF
card mode, if the TF card does not exist automatically jump to the U disk
mode,and both devices have installed,then you can manually set the play mode.For
details please see the key operating instructions.
3) Buttons can be adjusted up and down to control songs,volume up and down,
pause or play, mode switching.For details please see the key operating
instructions.
4) Press menu button enter the single/all song play mode.The default mode is the
all song mode when power up.Pressing the Repeat button can replace the
circulating mode.



Key Operating Instructions:
"Prev / V--" button: "Press" for switchingprevioussong, "long press" for volume
down
"Next/v++" button: "Press" for switchingnextsong, "long press" for volume up.
"P / P / Mode" button: "Press" for the "Play/Pause" Switch, "long press" for U
disk, TF card mode.
"Repeat" button: "Press" for single/all song" mode(no long press)

Note:
1."Long press" approximate 2S.
2 .If you use U disk mode, it is recommended 5V power supply, and some U disk
does not support 3.7V power supply.

Product s Pecif
