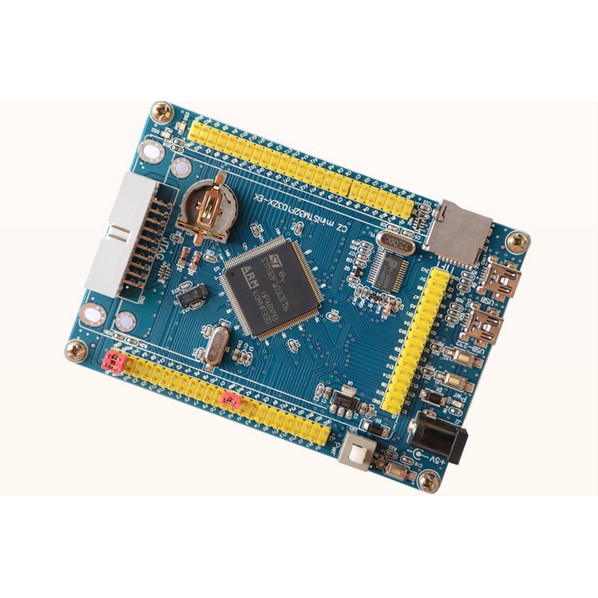

HQ stm32F103ZEt6 core board / 72MHz / 512KFlash / 64KRAM

Detail HQ stm32F103ZEt6 core board / 72MHz / 512KFlash / 64KRAM

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirstock 22 nov = 5 pcs

Description:

16bit PWM resolution

PWM unit number 2

RAM Size 64 kB

USB channel 1 device

Typical Operating Supply Voltage 2.5, 3.3 V

Surface Mount

Width 20.2mm

Package Type LQFP

Dimensions 20.2 x 20.2 x 1.45mm

Pin Count 144

Instruction Set Architecture RISC

32bit data bus width

Minimum Operating Temperature -40 C

Maximum number one CAN channel

Maximum Number of Channels 2 I2C

LIN maximum number of channels 0

Maximum number of channels 0 PCI

Maximum number of channels 3 SPI

Maximum number of UART channel 0

Maximum number of channels 5 USART



Maximum operating temperature +85 C

Maximum frequency 72MHz

Analog 3 (21 x 12 -bit)

12bit ADC resolution

ADC unit number 3

ADC channels 21

Program Memory Size 512 kB

Program Memory Type Flash Memory

STM32 family name

Pulse Width Modulation 2 ( 16 ) ( Motor Control )

Device Core ARM Cortex M3

Timer 6 x 16

Timer Resolution 16bit

Timers Number 6

Length 20.2mm

Height 1.45mm





Core Board Features :



Independent 32p TFT LCD Interface





Second, the core board hardware resources :



All IO ports are leads ( including the ADC reference voltage VREF)



Two user buttons,

A reset button ;

Two controllable LED;

A power indicator LED;

A USB to serial interfaces ( a key to download the program to use ) ;

A USB slave interface ;

A JTAG / SWD 20 -pin standard interface ;

A 32 foot FSMC TFT LCD screen interface
