HQ Smart car chassis 4 Drive / Power chrono with code disc / speed ZK-4WD

Detail HQ Smart car chassis 4 Drive / Power chrono with code disc / speed ZK-4WD

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirstock per 8 feb = 20 pcs

Wheel diameter of about 6cm, bottom plate thickness of about 3mm, a length of
about 25cm, a width of about 14.8cm

Our car chassis has the following advantages:

1. The mechanical structure is simple, very easy to install.

2. Using four reducer DC motor turning flexible, good direction. Four-drive,
horsepower chronological. Chassis big and steady very easily extended

3. The car comes with tachometer encoder, with speed photoelectric shop, you can
quickly compose a speed system. You can speed, range, consisting of a
closed-loop system.

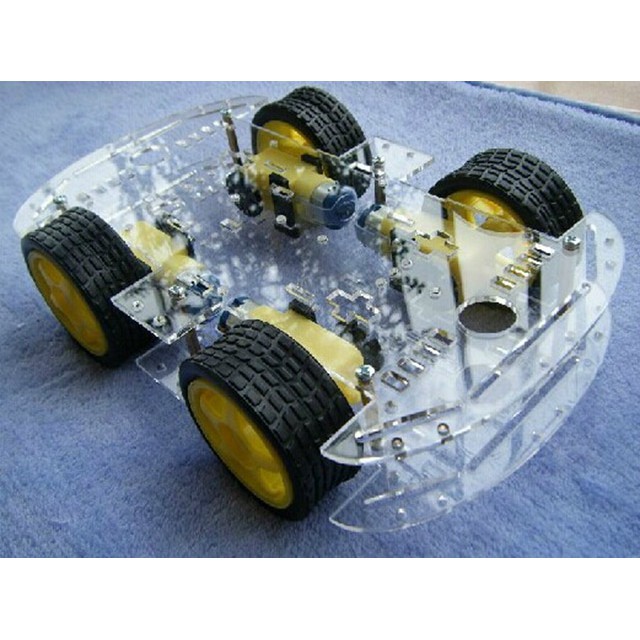

Two-layer structure: to facilitate expansion

Car size and dimensions:
Car width of the two outer wheels distance 155MM
Car length 260MM
Size car chassis without tires are 26cmx15.5cm
Car chassis containing tire size 26cmx17.5cm
Car parts are in the form of shipping (for transport), with 3D installation
drawings, get our hands on the drawings as long as ten minutes to complete the
installation is very simple

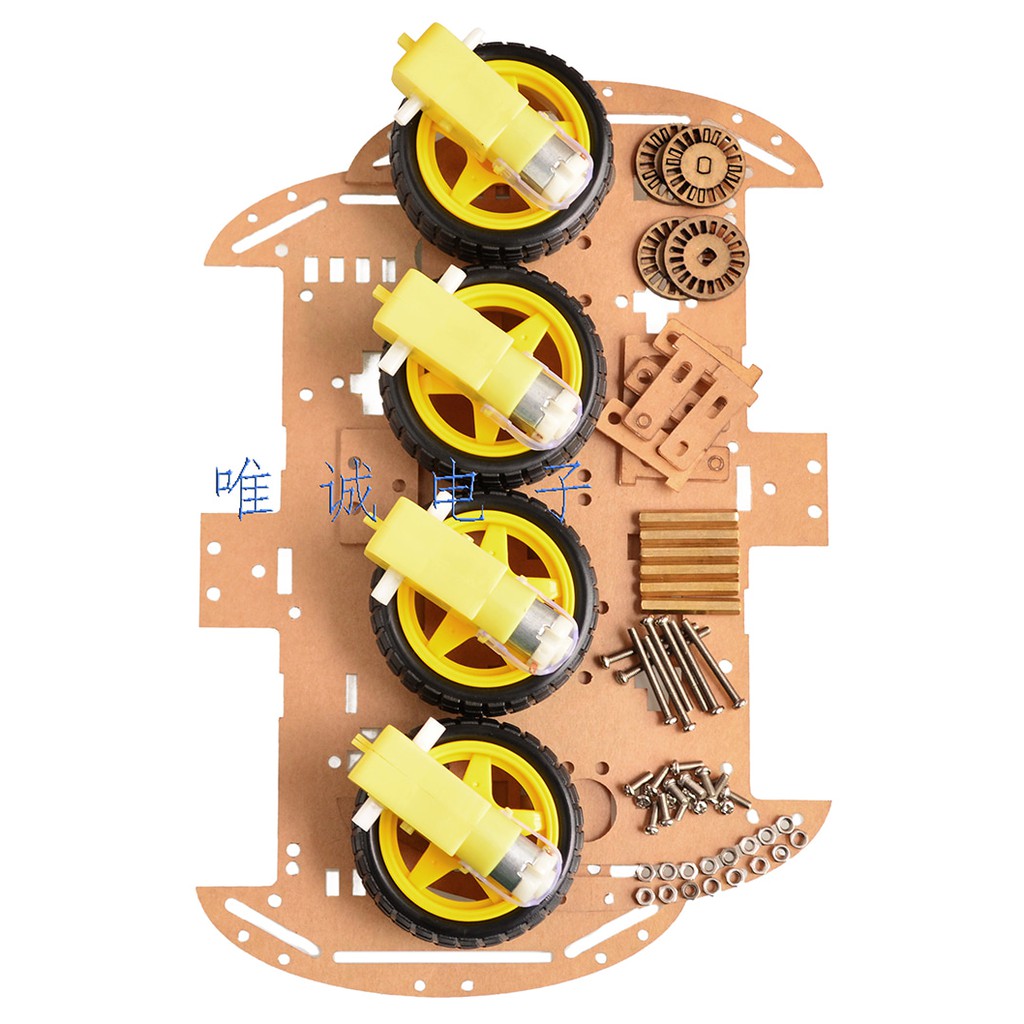

Shipping list:
Car chassis (acrylic material) 2
DC geared motor (magnetic detection over EMC) 4
Yellow wheels 4
20 line speed encoder (non-ordinary six-lane ten-wire) 4
Fastener 8
3D assembly drawings (Chinese Version) 1

Several pillars screw nut
