HQ Simple Servo Tester Servo Tester model aircraft ESC motor test

Detail HQ Simple Servo Tester Servo Tester model aircraft ESC motor test

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirSTOCK per 14 maret = 25 PCS

Simple Servo Tester Tester Tester TITAN third gear switch with indicator light

Product Specifications:
(1) Output: 15mA (5.0)
(2) Input: the DC 4.2-6.0v
(3) output signal: 1.5ms 0.5ms
(4) Size: 46 * 32 * 17MM
(5) Weight: 8g
(6) adjustment: manual, automatic, with a median
characteristic: the ability to easily detect and configure server virtual bit,
jitter and median.
connect two servos or ESC; MCU control, stability ,High precision. Turn the
knob, steering gear can be detected.
If you connect the electronic governor (brush or brushless available), you can
get rid of the remote control device for manual control, for testing adjust
the speed or performance of the motor is very practical, no longer cumbersome
connect the remote control and the receiver up. It acts as a "hand
moving receiver" function, the rotary knob analog transmitters rudder

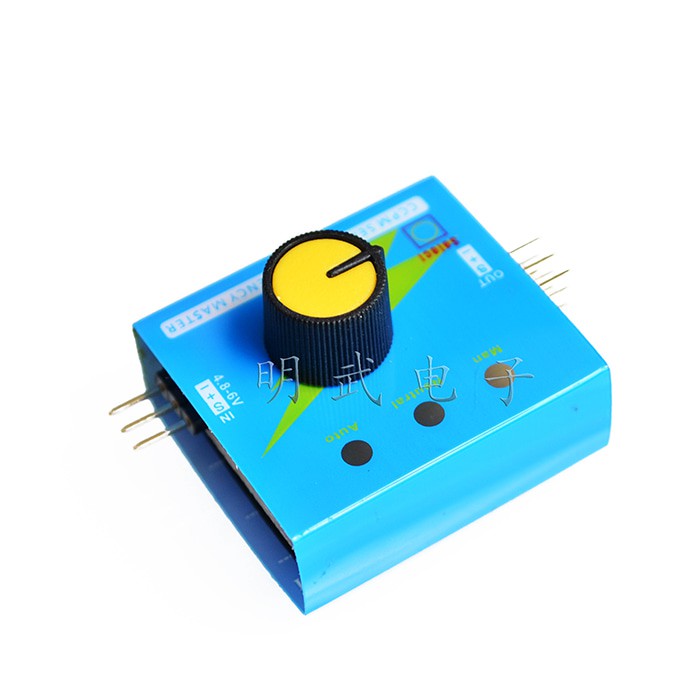

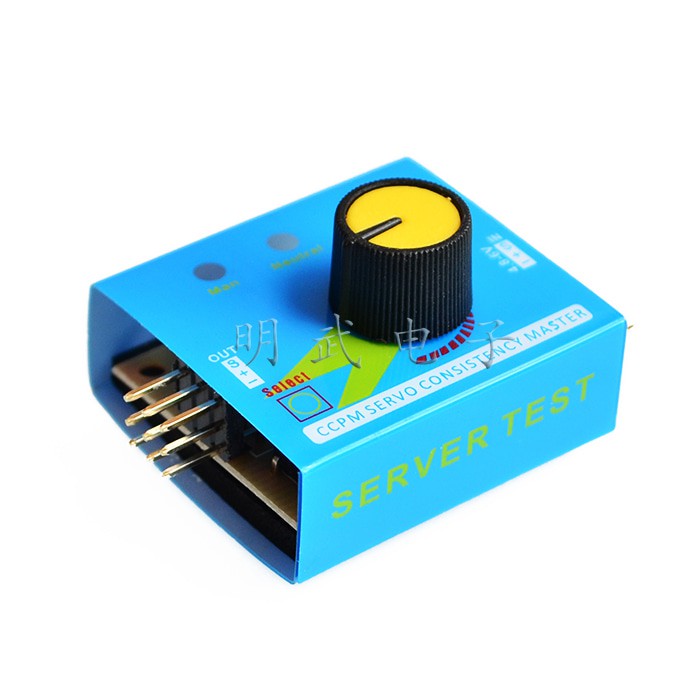

Instructions: Refer to the picture below, then left steering gear, the next 3
points in the group, which can be accessed three servos; the right of a single
row of pins connected to the power supply, close to the edge of the negative
electrode (to see marked with the symbol), then the battery negative, be careful
not reversed, if the reverse power will burn IC; S identifiers corresponding to
the pin, it does not matter. Power, blue light will light at the same time, and
then just left of the first light, manual adjustment potentiometer test, press
the button, the middle light, normalized test; the third lights, automated
testing. ESC test connection and then steering the same, but do not draw a line
on the input power source, and test the motor must first contact the ESC, the
ESC test with the same!
