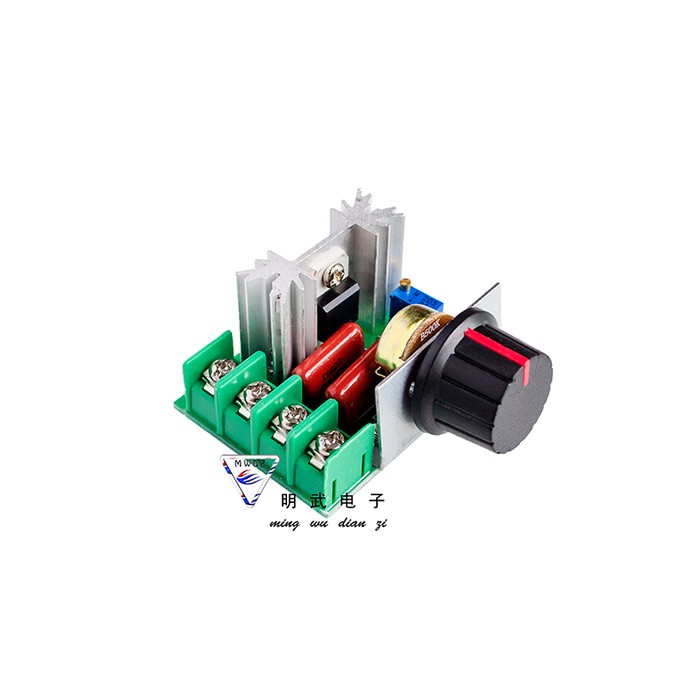

HQ SCR 2000W imported power electronic regulator, dimmer, speed

Detail HQ SCR 2000W imported power electronic regulator, dimmer, speed

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirSTOCK per3 mei = 25 PCS


The regulator is specially modified for precision motor control circuit via
multi-turn potentiometer to adjust the minimum output voltage.

Parameters:
Voltage: AC 220V
Maximum power: 2000 the W
Voltage Regulator: AC 50-220V
Size: high temperature FR-4 circuit board circuit board about 36MM * 48MM

External dimensions: 48MM * 60MM (dial direction) * 28MM (high)

Silicon controlled voltage up to 1200 V / current 25A

1.6mm thick epoxy CCL

The voltage regulator with peak power SCR snubber circuit effective protection,
longer life and more durable.

Usage:
put this product series with the lamp or in electrical circuits, (that is, the
lamps, and other electrical appliances disconnect any FireWire or zero line one,
put this "product" of the two wires connected to both) rotary potentiometer
rotating rod, you can adjust the play of light and shade, speed, pressure,
temperature control effect; easy to use. This product is suitable for: using the
new two-way high-power thyristor as current up to 25 A, a good solution to the
problem of over-current electric wire in the case of cooling is too small to
cause the resistance; can be easily adjusted mains the output voltage of between
90 and 220 volts ---- any adjustment, for the use of electrical appliances. Such
as: furnace, hot water heater tune, dimming lamps, small motor speed, electric
iron thermostat and so on. So as to achieve dimming, thermostats, pressure
effect. For less than 2000 watts of electrical power use due to the large
electrical power has been great, so the general home appliances or small
factories enough to use. ( Inductive or capacitive load power should be reduced,
this regulator is equipped with two-way high-power thyristor, potentiometers are
with nuts, do not add any components to use, very convenient and practical ).
