HQ RFID module RC522 Kits S50 13.56 Mhz 6cm With Tags SPI Write & Read

Detail HQ RFID module RC522 Kits S50 13.56 Mhz 6cm With Tags SPI Write & Read

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirstock per 28 agustus = 50 pccs

RFID module RC522 Kits S50 13.56 Mhz 6cm With Tags SPI Write & Read for arduno
uno 2560,High quality products

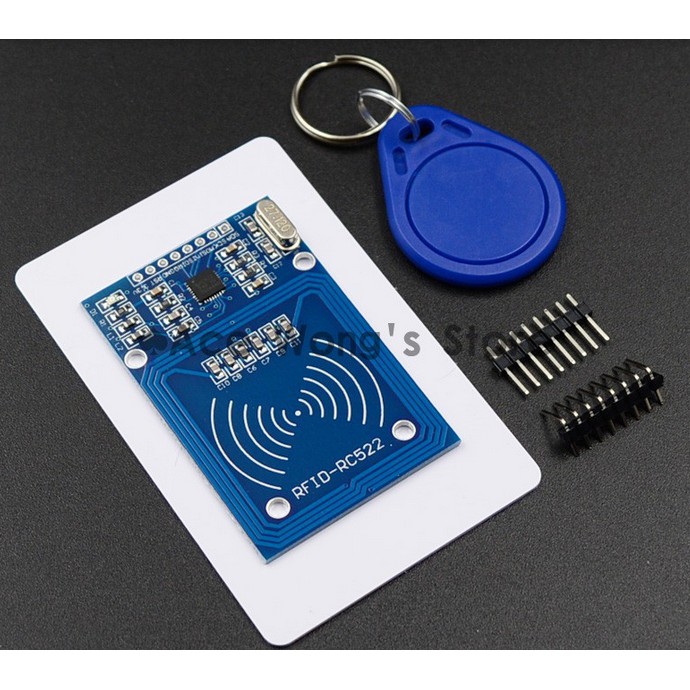

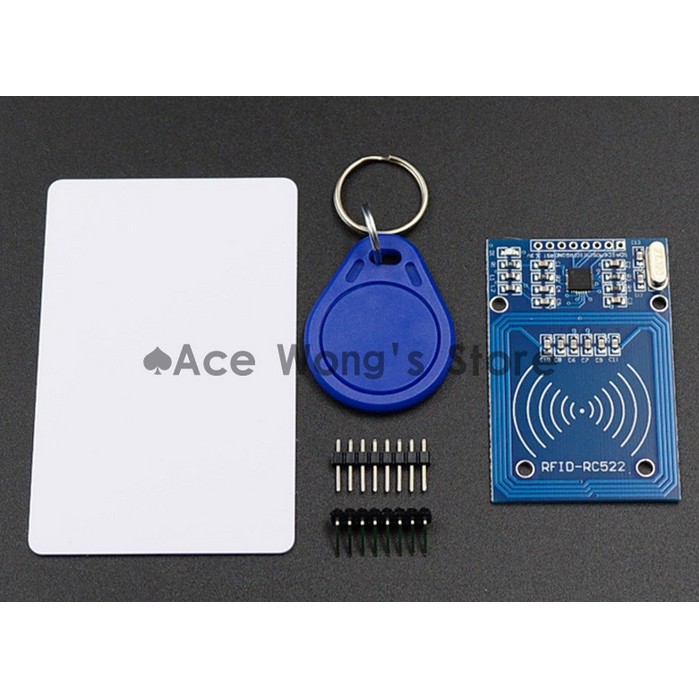

1, RFID-RC522 module one;

2, the standard S50 blank card one;

3, S50 shaped cards one (as shown keychain shape);

4, vertical, curved row of pins each one;

Note: The relevant technical details and the development of routines, etc. Want
to contact customer service request, please buy download address.

Mainly includes the following:

A, supporting reference materials;

B, mainstream processors (including MSP430F149) RC522 module for this
application C program;

RC522 chip [Introduction]

MF RC522 is applied to 13.56MHz contactless communication highly integrated chip
card reader, is NXP for the "Three Tables" application launch of a low-voltage,
low-cost, small size and non-contact card reader chip, smart instrumentation and
portable handheld devices developed better choice. MF RC522 using advanced
modulation and demodulation concept completely integrated in all types of
13.56MHz passive contactless communication methods and protocols. Support 14443A
compatible transponder signals. The digital part handles ISO14443A framing and
error detection. In addition, support fast CRYPTO1 encryption algorithms,
terminology validation MIFARE products. MFRC522 supports MIFARE Series higher
speed non-contact communication, two-way data transfer rates up to 424kbit / s.
As a highly integrated 13.56MHz card reader new family of chips, MF RC522 MF
RC500 and MF RC530 and there are many similarities, but also have many features
and differences. It is between the host communication using SPI mode, helps to
reduce connection, reduce PCB board size and cost.

Gambar produk
