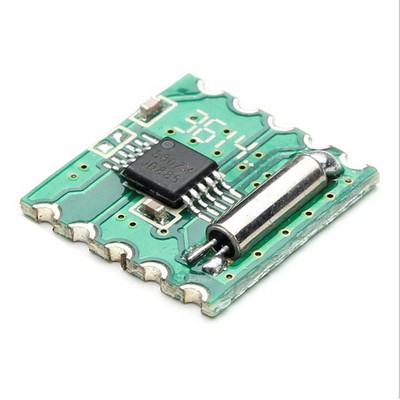

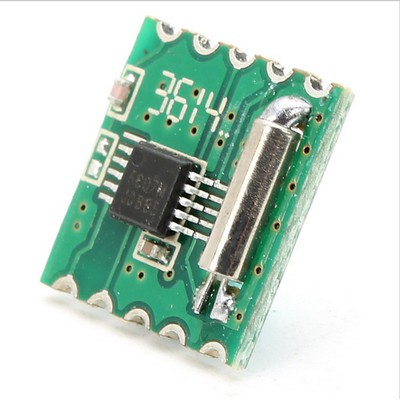

HQ RDA5807M RRD102V2.0 FM stereo radio module

Detail HQ RDA5807M RRD102V2.0 FM stereo radio module

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirstock per 28 agustus = 25 pcs




Download Link:
Product Overview:
" RRD -102V2.0 " stereo radio module ( the FM Radio Pay Per View Stereo Module1
) high sensitivity, low power consumption, ultra-small size FM stereo radio
module. Using RDA Microelectronics of RDA5807M (or RDA5802NM ) , this circuit
external components, the noise factor is minimal. Small size, low power, low
cost, simple application, using a wide range of advantages. Is an easy possessed
highly cost-effective single-chip FM stereo radio module.
A: Mobile DVD , TV , MP3 , MP4 and other built-in FM wide-band wireless receiver
module.
B : mining, business, campus, residential, tourist areas and other public
places, stereo FM radio system.
C : wireless audio and wireless stereo headset function.
D : the GPS navigation system, radio and television broadcasting FM radio.
E : high-end game consoles and wireless audio electronic toys.
F. : Stereo mobile phone, cell phone, intercom systems, mobile radio and other
radio devices.
G : PDAS and Notebook PC and other peripheral applications.
Second, the functional characteristics:
The A , using a common 102BC module package, users can replace the use of
direct, without changing the circuit design.
B , high sensitivity, low noise, anti-interference ability, very few external
components, small size ( . 11 * 11.2mm Max ), extremely simple to use.
C , 76-108MHz worldwide FM band compatible (including Japan 76-91MHz and Europe
87.5-108.5MHz ).
D , the I2C serial data communications bus interface , support for external
reference clock input.
E , fully integrated COMS technology single-chip integrated circuits, power
consumption is minimal.
F. , High-accuracy the A / D (ADC) and digital frequency synthesizer.
G , built-in LDO adjustment, low power consumption, wide voltage range ( 2
