HQ PWM DC motor speed controller 6V12V24V28V 3A speed switch 1203B

Detail HQ PWM DC motor speed controller 6V12V24V28V 3A speed switch 1203B

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirstock per 5 april = 10 pcs

special reminder:Description:
This DC Motor Speed Controller allows controlling the direction of a DC motor
using a Pulse-- Width-Modulated (PWM) DC voltage with a Duty Cycle fully
adjustable from 0%-100%.
The motor speed controller can easily provide a continuous current of3A to your
DC motor or other DC load.

Main technical parameters:
- Input supply voltage:6V-28VDC
- The maximum output power: 80W
- The maximum continuous output current :3A
- Duty Cycle adjustable:5%-100%
Quantity:1PC

Operating instruction:

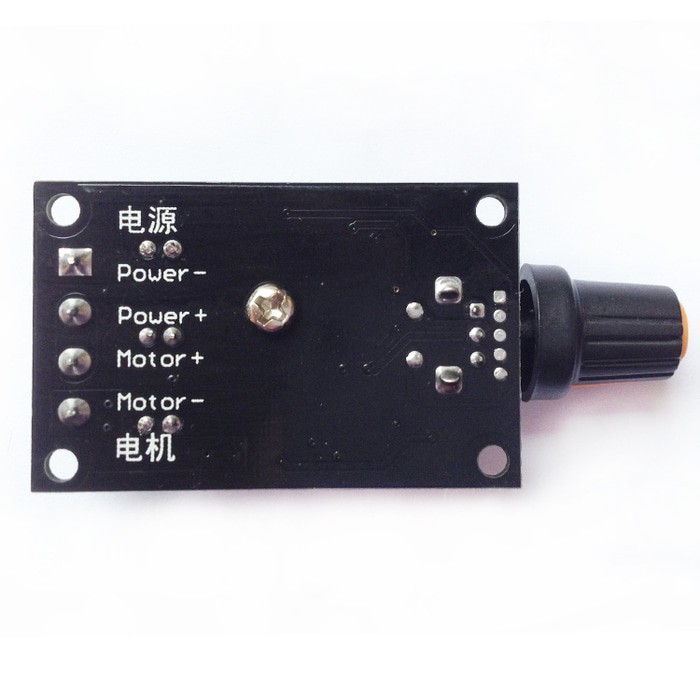

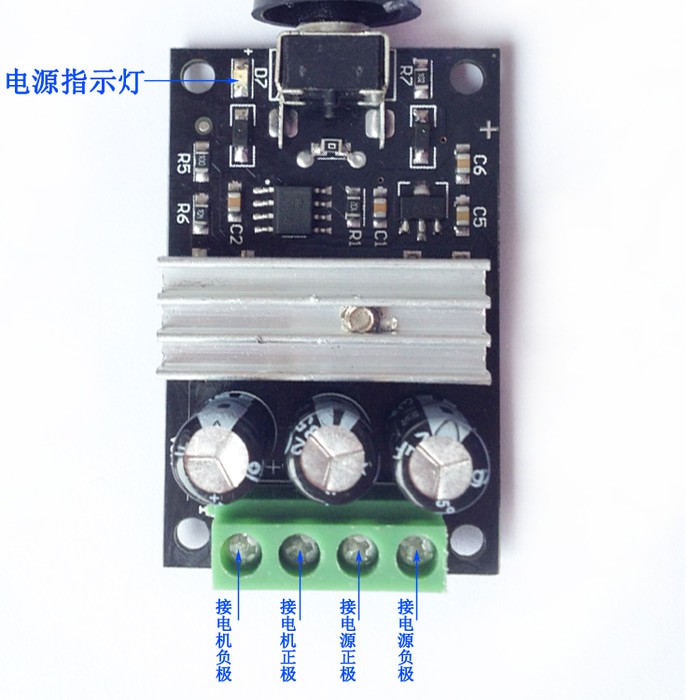

1. Connect your DC motor (or DC load) to the motor terminals as indicated on the
wiring diagram.
2. Connect a voltage of 10V-36V DC to the circuit making sure of the correct
polarity of the connection. Note that the voltage applied to the motor will be
supply voltage applied to the circuit. It is recommended to add an appropriately
rated fuse inline with the positive supply in order to protect the circuit from
any possible short circuits.
3. You can now control the speed of the motor through potentiometer.

Package included:

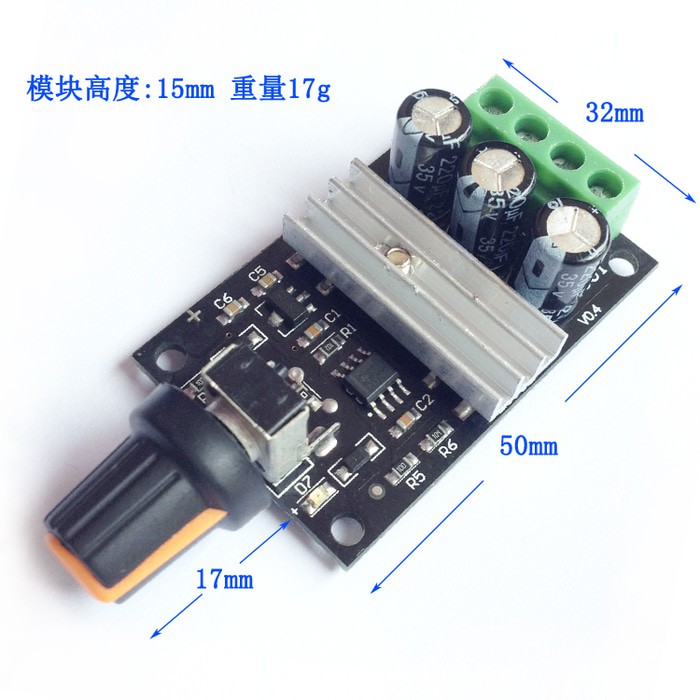

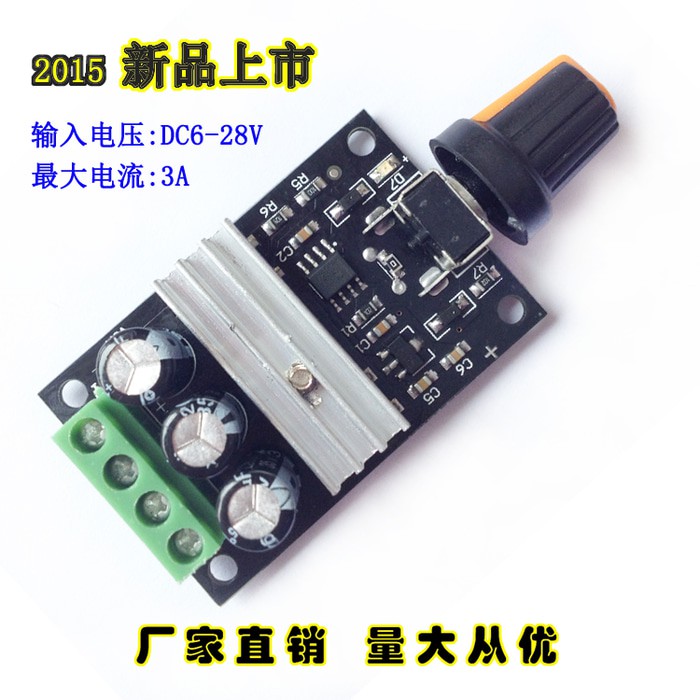

1 x DC 6V - 28V 3A PWM Motor Speed Variable Regulator Controller Switch

Gambar produk
