HQ MT3608 2a boost DCDC board boost module input wide 2/24V L 5/9/12/24v

Detail HQ MT3608 2a boost DCDC board boost module input wide 2/24V L 5/9/12/24v

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirstock per 12 feb = 200 pcs

he module features:
1) Maximum output current: 2A
2) Input voltage: 2 v ~ 24 v
3) Maximum output voltage:> 28 v
4). Efficiency:> 93%
2. Mechanical properties:
Size: 36 mm * 14 mm * 7 mm
3. Use
After the module, + and - 2 ~ 24 v, adjust the potentiometer to adjust the
output voltage, output voltage than the input voltage
4. Notes
1). Input voltage should not exceed the maximum input voltage
2). Peak current output current does not exceed 2A


Module Highlights:
The whole network the smallest adjustable boost module can be easily installed
in a variety of small equipment inside.
Can MicroUSB input with USB charger or mobile power supply through the phone
line can easily get 9V, 12V, 15V, 18V, 24V voltage common, easy to use.
Wide input and output voltage, high conversion efficiency.
Module Features
1) Maximum output current: 2 the A (recommended in 1A)
2) Input voltage: 2 V - 24 V
3) Maximum output voltage:> 28 V (recommended to use within 26V )
4) Efficiency:> 93% (efficiency of input and output pressure related)
5 ) Size: 30mm * 17 mm * 14 mm (length * width * height )

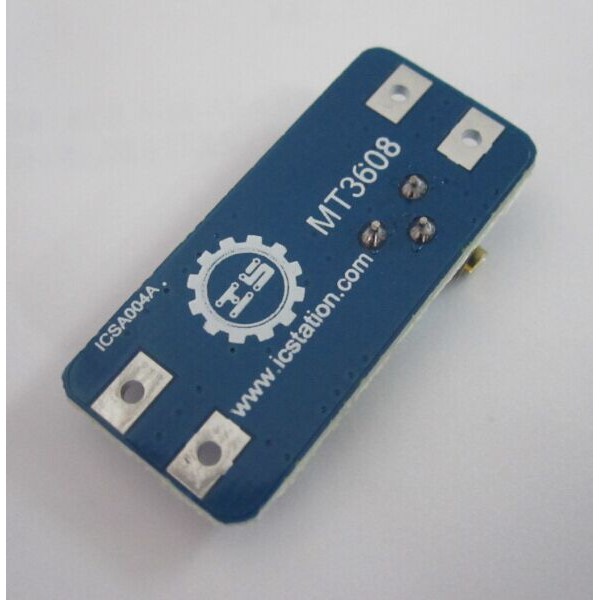

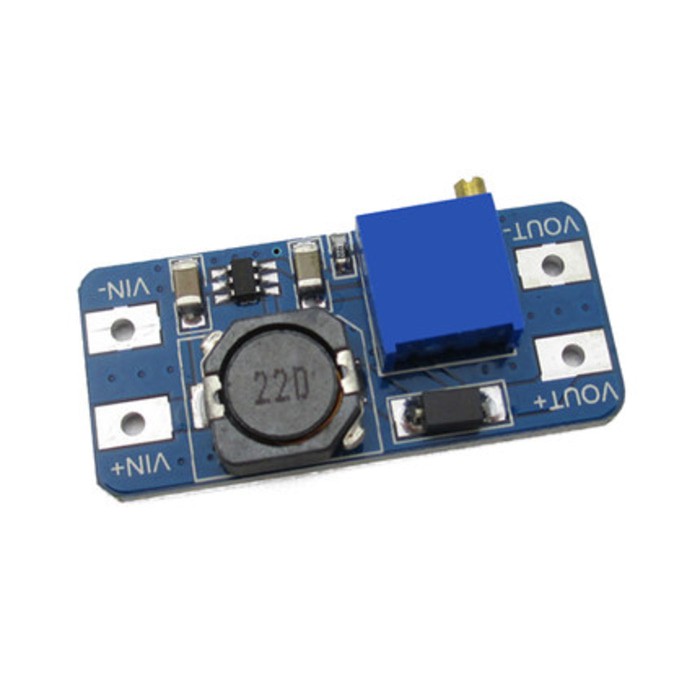

Gambar produk
