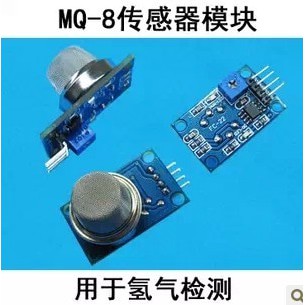

HQ MQ-8 hydrogen gas sensor module

Detail HQ MQ-8 hydrogen gas sensor module

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirMQ-8 Sensor Information: sensitive material MQ- 8 gas sensors used in clean air,
low conductivity tin oxide (SnO2). When there is an environment in which the
combustible gas sensor, conductivity sensor with increasing concentration of
combustible gases in air increases. Use simple circuit can convert the change in
conductivity of the gas concentration corresponding to the output signal. MQ-8
hydrogen gas sensor of high sensitivity monitoring of other hydrogen-containing
gas is also very good. The sensor can detect a variety of hydrogen-containing
gas, in particular, city gas, is a low-cost sensor suitable for a variety of
applications.

Module Applications:
Suitable for home or industrial hydrogen leak monitoring devices. Can not
interfere with ethanol vapor, soot, carbon monoxide and other gases.
Module Features: 1, using high-quality dual-panel design, with power indicator
and a TTL signal output instructions; 2, with DO switching signal (TTL) output
AO analog signal output; 3, TTL output valid signal is low. (When the output low
signal light can be directly connected microcontroller or relay modules) 4, the
higher the higher the voltage, the voltage concentration analog output. 5, for
better hydrogen detection sensitivity. 6, there are four screw holes for easy
positioning; 7, Product Dimensions: 32 (L) * 20 (the W) * 22 (H) . 8, has a long
life and reliable stability 9, rapid response recovery characteristics









Electrical performance: Input voltage: DC5V power (current): 150mA the DO
output: TTL digital 0 and 1 (0.1 and 5V)

AO Output: 0.1-0.3V (relatively clean), the highest concentration of about 4V
voltage Special note: Sensors Power, the need to warm about 20S, measure
