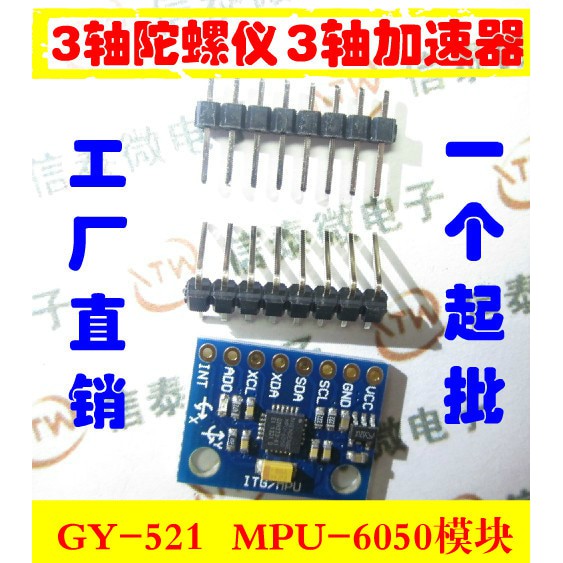

HQ MPU-6050 module three-axis acceleration gyroscope 6DOF module GY-521

Detail HQ MPU-6050 module three-axis acceleration gyroscope 6DOF module GY-521

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirstock per 28 juni = 25 pcs

Information please download: MPU-6050 module (three-axis gyroscope + three-axis acceleration)



Use the chip: MPU-6050

Power supply: 3-5v (internal low voltage regulator)

Communication: Standard IIC communication protocol

Chip built-in 16bit AD converter, 16-bit data output

Gyro range: 250 500 1000 2000 / s

Acceleration range: 2 4 8 16g

Using Shenjin PCB, the machine welding process to ensure quality

Pin pitch 2.54mm



Provide schematic, relevant data sheet and reference documentation



MPU-6000 is the world's first integrated 6-axis motion processing components,
compared to multi-component program, eliminating the combination of gyroscope
and accelerator when the difference between the axis of the problem, reducing
the large number of packaging space. The MPU-6000 incorporates a 3-axis
gyroscope, a 3-axis accelerator, and a hardware acceleration (DMP: Digital
Motion Processor) that can be connected to other brands of accelerators,
magnetic sensors, or other sensors via a second I2C port Engine, from the main
I2C port in the form of a single data stream, the output to the application of a
complete 9-axis convergent computing technology

InvenSense's motion processing database, which handles complex data for motion
sensing, reduces the workload of motion processing operations on the operating
system and provides a structured API for application development.

The angular velocity of the MPU-6000 is 250, 500, 1000 and 2000 / sec (dps), and
can be used to quickly and slowly, and the user can control the accelerator
Measuring range of 2g, 4g 8g and 16g. Product tra
