HQ MACH3 engraving machine interface board 5 axis stepper motor driver

Detail HQ MACH3 engraving machine interface board 5 axis stepper motor driver

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirstock = 10 pcs

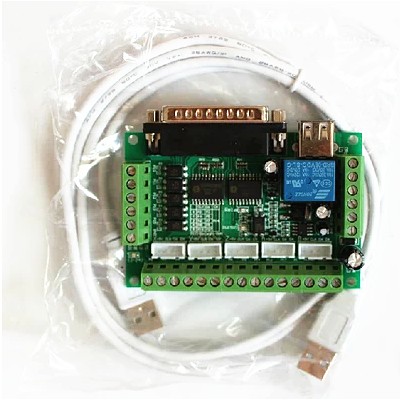

Get a USB cable (without parallel cable), instructions to send e-mail

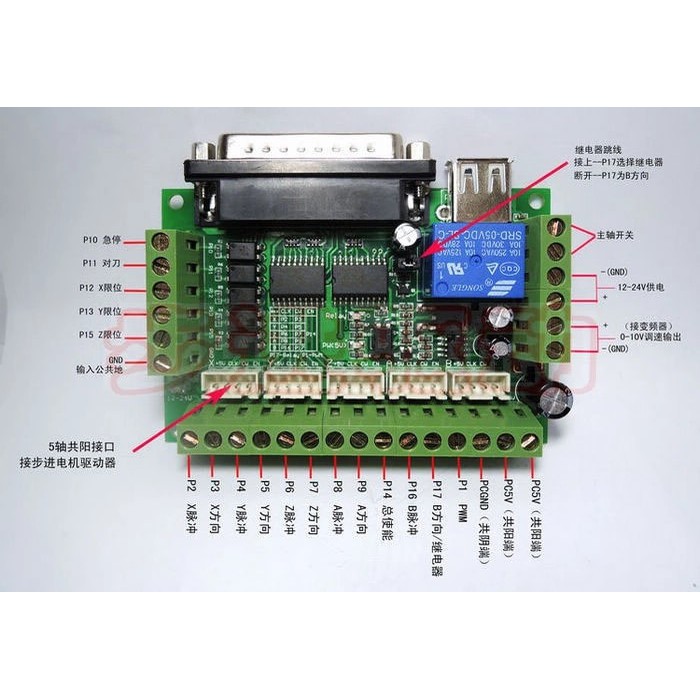

1, full support for MACH3 and other support parallel port control computer
software.
2, USB power supply and peripheral phase separation to protect computer
security.
3, the external wide voltage input, 12-24V, with anti-reverse function.
4, all input signals all via the optical coupling isolation, can be accessed by
emergency stop, the knife, spacing, etc., to protect computer security.
5, one relay output port, can control the spindle switch. Output port for the
P17 port.
6, all the way through optocoupler isolated 0-10V analog voltage output, it can
control the drive with the corresponding analog interface, to control the
spindle speed. Output port to port P1.
7, open to all 17 ports, which can be accessed with the drive optocoupler can be
controlled 5-axis stepper motor.
8, P1 PWM output can be controlled with optocoupler input spindle governor
