Detail HQ LM2596 DC 4.0~40 to 1.3-37V Adjustable Step-Down Power Module+LED
hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirSTOCK = 30 pcsDC-DC Step Down Converter Module

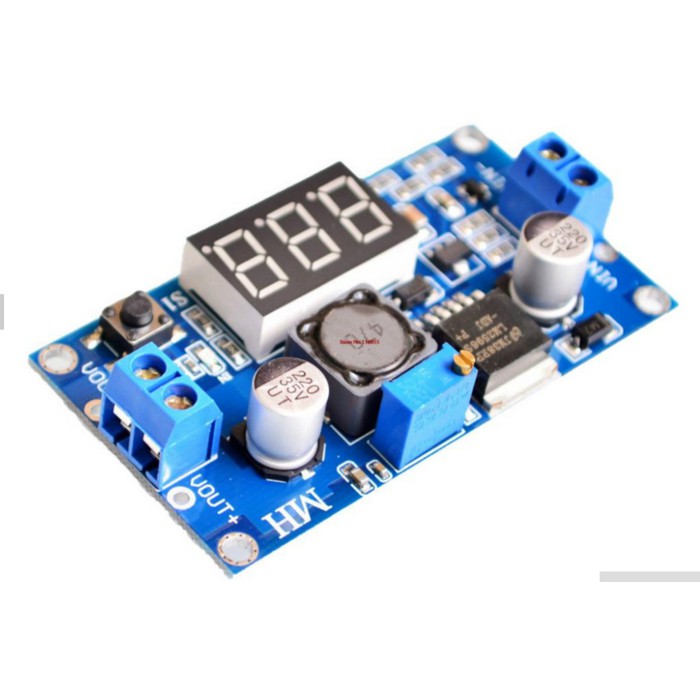

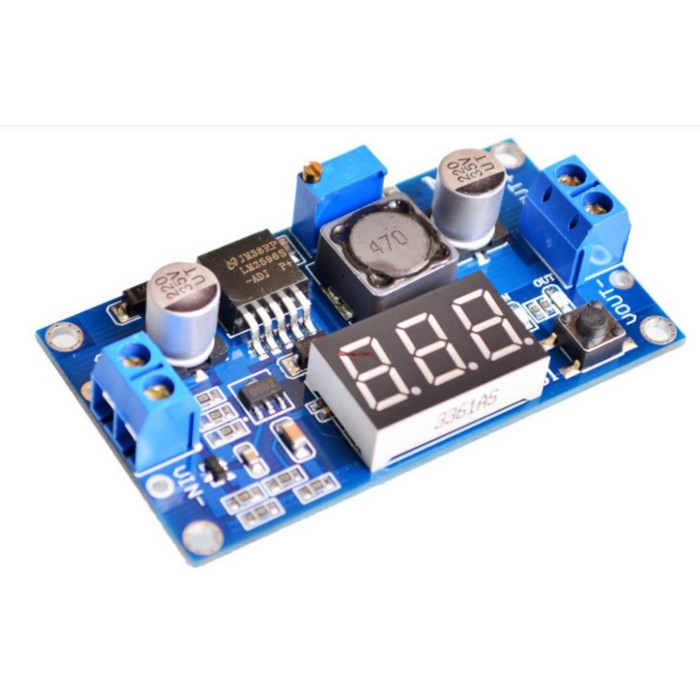

LM2596 DC 4.0~40 to 1.3-37V Adjustable Step-Down Power Module
Voltage Regulator+ LED Voltmeter
Features:
100% Brand New.
The Voltmeter Resolution: 0.1V
The Voltmeter Digital Display Range: 0v-45v
The Voltmeter Input Voltage Range: Dc 4v-40v
Output Voltage: Continuous Adjustable (1.3v-37 V)
Output Current: 2a
size :65*35mm
Led Digital Voltmeter Tube, The Accuracy Is Adjustable Function, Can Be Aimed At
Your Multimeter Adjustable Accurate.
Press the key "S1" to let the display show the input or output voltage. when the
green led light, it shows output, the red show input.
Note:
To guarantee the accuracy of the voltmeter , make sure the input voltage above
4V.
The input voltage must be 1.5v higher than the output voltage or 1.5v above.
Package Content:
1 Pcs x LM2596 Power Module
