HQ L298N motor driver board module stepper motor smart car robot

Detail HQ L298N motor driver board module stepper motor smart car robot

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirstock per 10 okt = 100 pccs

Working mode: H bridge (double lines)
Control chip: L298N (ST)
Logical voltage: 5V
Driving voltage: 5V-35V
Logical current: 0mA-36mA
Driving current: 2A (MAX single bridge)
Storage temperature: (-20 C)-(+135 C)
Maximum power: 25W
Weight: 30g
Periphery dimension: 43 x 43 x 27mm(L x W x H)
Using L298N made by ST company as the control chip, the module has such
characteristics as strong driving
ability, low calorific value and strong anti-interference ability.
This module can use built-in 78M05 for electric work via a driving power supply
part. But to avoid the damage
of the voltage stabilizing chip, please use an external 5V logic supply when
using more than 12V driving voltage.
Using large capacity filter capacitor, this module can follow current to protect
diodes, and improve the reliability.

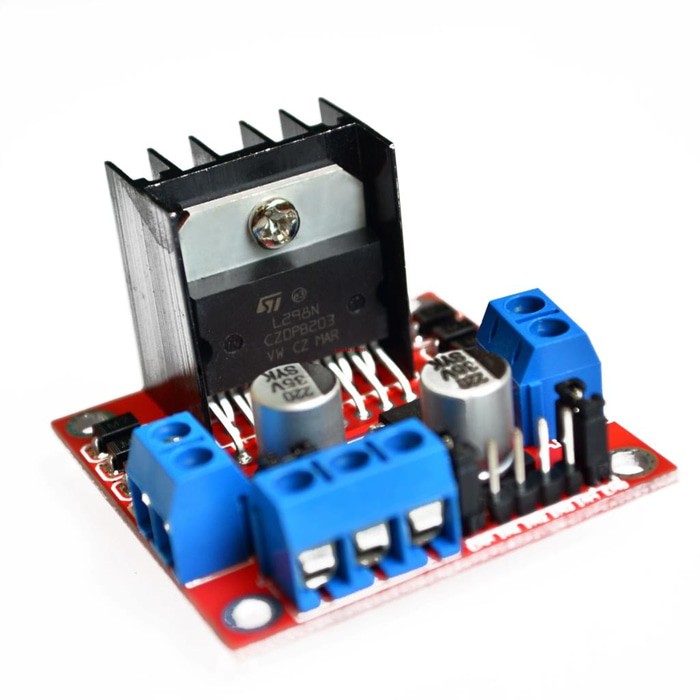

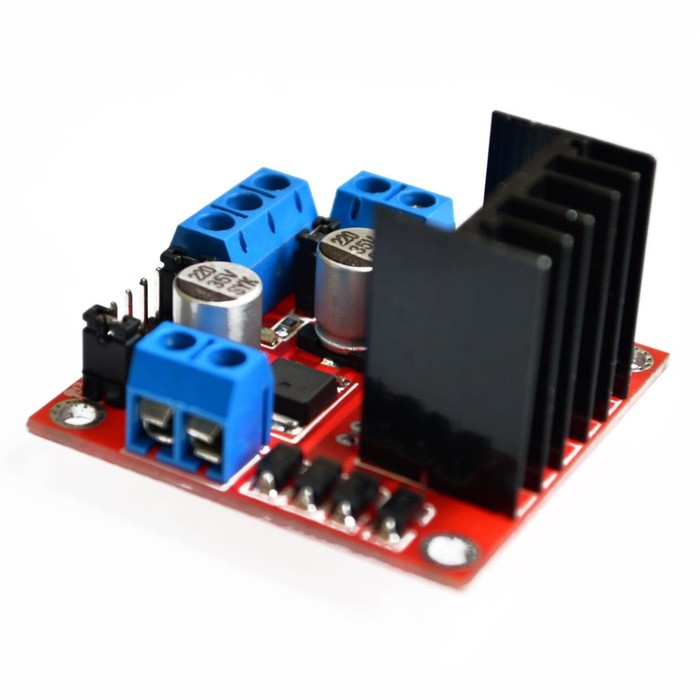

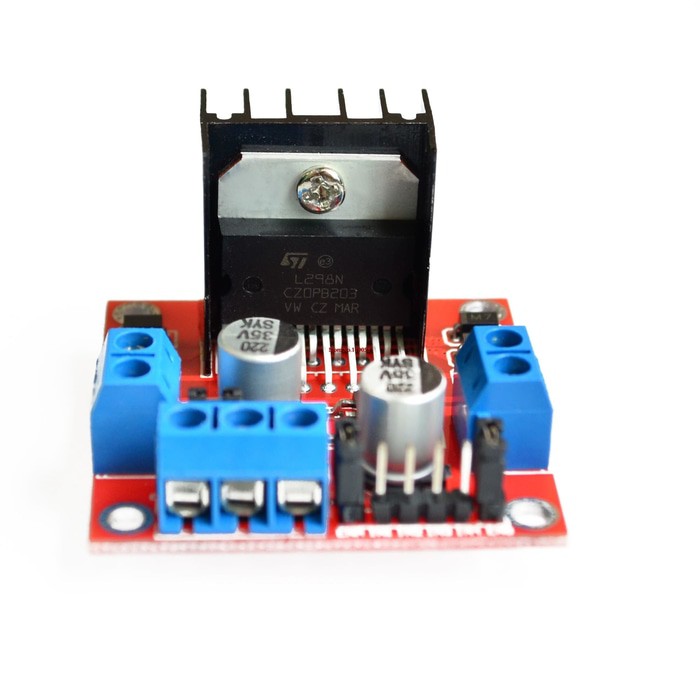

Gambar produk
